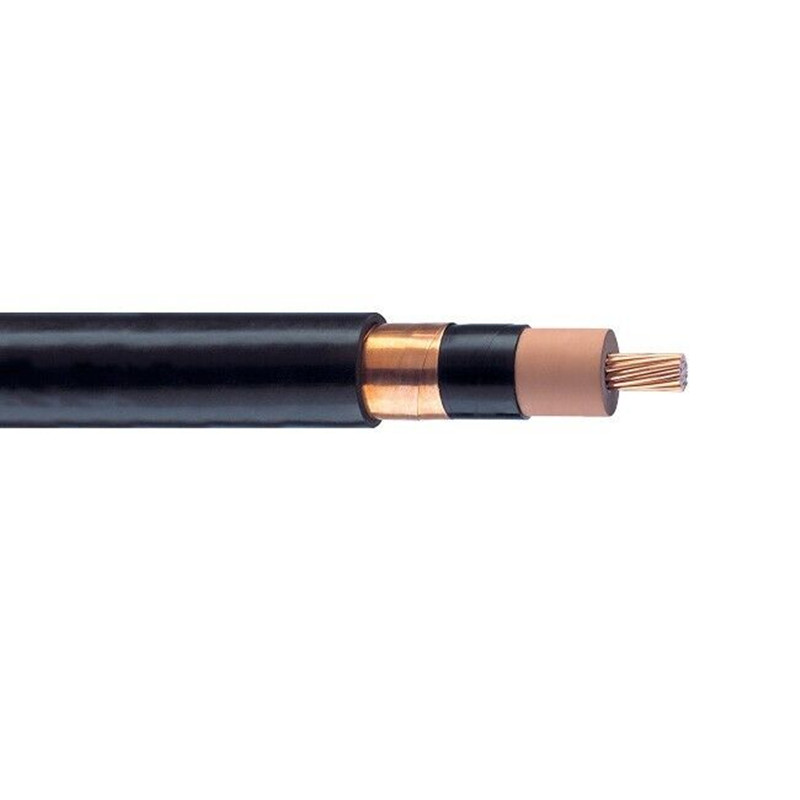

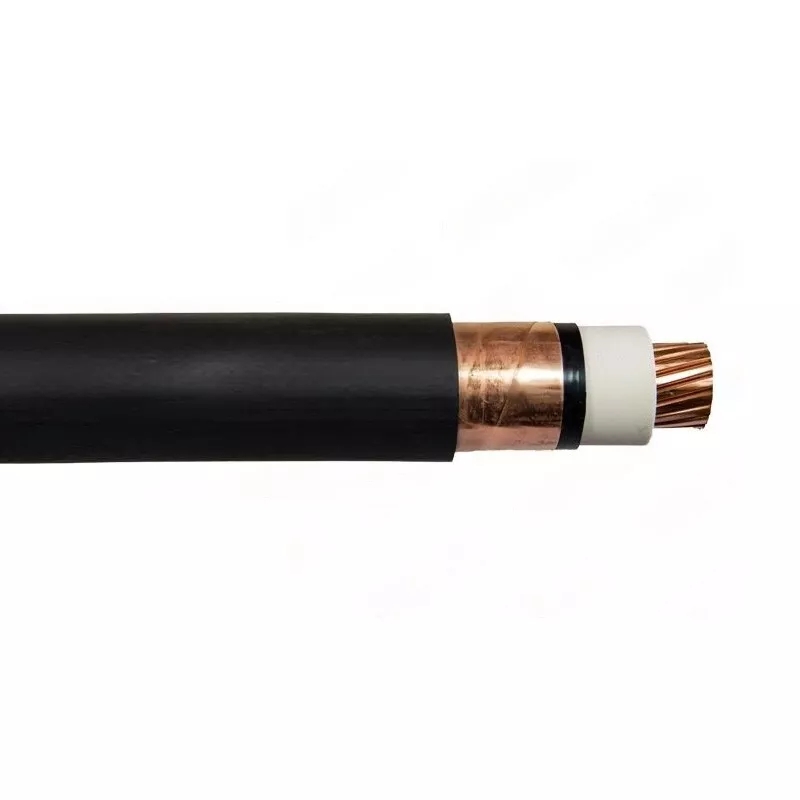

5-35KV MV-105 EPR/PVC Single Conductor CU Tape Shield

1. Application: For use in aerial, direct burial, cable tray, conduit, and underground duct installations as permitted by the National Electric Code.

2. Structure:

Conductor: single conductor, annealed copper or aluminium conductor, class B;

Conductor screen: Semi-conducting compound

Insulation: EPR

Insulation screen: Semi-conducting compound

Metal screen: copper tape, with thickness of 5mis (0.127mm), with 25% overlap.

Jacket: PVC, black color.

3. Standard: UL1072, ICEA S-93-639, ICEA S-94-649

4. Voltage: 5KV, 8KV, 15KV, 25KV, 28KV, 35KV, 46KV, 100% and 133% insulation level.

5. Working temperature:  conductor temperatures not exceeding 105°C for normal, 130°C for emergency overload and 250°C for short-circuit conditions.

6. Minimum bending radius: 20XOD of cable

Demension&Performance of 100% insulation level
Voltage	Conductor  size	No.  of wires in cond.	Insulation thickness	Nominal sheath thickness	Overall diameter App.	Approx. weight （Kg/Km）
KV	AWG/MCM	Nos	[mm]	[mm]	[mm]	CU	AL
5KV	2	7	2.29	1.65	18.2	664	466
5KV	1	19	2.29	1.65	19.0	752	497
5KV	1/0	19	2.29	1.65	19.9	880	556
5KV	2/0	19	2.29	2.03	21.8	1080	673
5KV	3/0	19	2.29	2.03	22.9	1278	760
5KV	4/0	19	2.29	2.03	24.3	1523	868
5KV	250	37	2.29	2.03	25.4	1745	965
5KV	350	37	2.29	2.03	27.9	2285	1192
5KV	400	37	2.29	2.03	28.9	2563	1308
5KV	500	37	2.29	2.03	30.9	3102	1533
5KV	600	61	2.29	2.03	33.2	3642	1754
5KV	750	61	2.29	2.03	35.6	4429	2062
8KV	2	7	2.92	1.65	19.5	704	512
8KV	1	19	2.92	1.65	20.3	809	563
8KV	1/0	19	2.92	2.03	22.0	981	668
8KV	2/0	19	2.92	2.03	23.0	1122	745
8KV	3/0	19	2.92	2.03	24.2	1323	836
8KV	4/0	19	2.92	2.03	25.5	1570	945
8KV	250	37	2.92	2.03	26.7	1794	1046
8KV	350	37	2.92	2.03	29.1	2339	1278
8KV	400	37	2.92	2.03	30.2	2621	1396
8KV	500	37	2.92	2.03	32.2	3163	1625
8KV	600	61	2.92	2.03	34.5	3709	1851
8KV	750	61	2.92	2.03	36.9	4500	2166
15KV	2	7	4.45	2.03	23.3	887	707
15KV	1	19	4.45	2.03	24.1	998	764
15KV	1/0	19	4.45	2.03	25.1	1136	833
15KV	2/0	19	4.45	2.03	26.1	1304	915
15KV	3/0	19	4.45	2.03	27.3	1511	1012
15KV	4/0	19	4.45	2.03	28.6	1763	1128
15KV	250	37	4.45	2.03	29.7	1993	1234
15KV	350	37	4.45	2.03	32.2	2551	1479
15KV	400	37	4.45	2.03	33.3	2838	1603
15KV	500	37	4.45	2.03	35.2	3389	1842
15KV	600	61	4.45	2.03	37.5	3946	2080
15KV	750	61	4.45	2.03	39.9	4749	2407
25KV	1	19	6.60	2.03	28.4	1216	994
25KV	1/0	19	6.60	2.03	29.4	1361	1070
25KV	2/0	19	6.60	2.03	30.4	1535	1160
25KV	3/0	19	6.60	2.03	31.6	1751	1266
25KV	4/0	19	6.60	2.03	32.9	2012	1391
25KV	250	37	6.60	2.03	34.0	2250	1505
25KV	350	37	6.60	2.03	36.5	2825	1769
25KV	400	37	6.60	2.03	37.6	3119	1901
25KV	500	37	6.60	2.03	39.5	3683	2154
25KV	600	61	6.60	2.79	43.3	4419	2581
25KV	750	61	6.60	2.79	45.7	5249	2935
35KV	1/0	19	8.76	2.03	33.7	1616	1340
35KV	2/0	19	8.76	2.03	34.7	1798	1437
35KV	3/0	19	8.76	2.03	35.9	2021	1552
35KV	4/0	19	8.76	2.03	37.2	2292	1687
35KV	250	37	8.76	2.03	38.4	2539	1811
35KV	350	37	8.76	2.03	40.8	3130	2091
35KV	400	37	8.76	2.79	43.4	3595	2404
35KV	500	37	8.76	2.79	45.3	4180	2679
35KV	600	61	8.76	2.79	47.7	4780	2962
35KV	750	61	8.76	2.79	50.1	5626	3333
