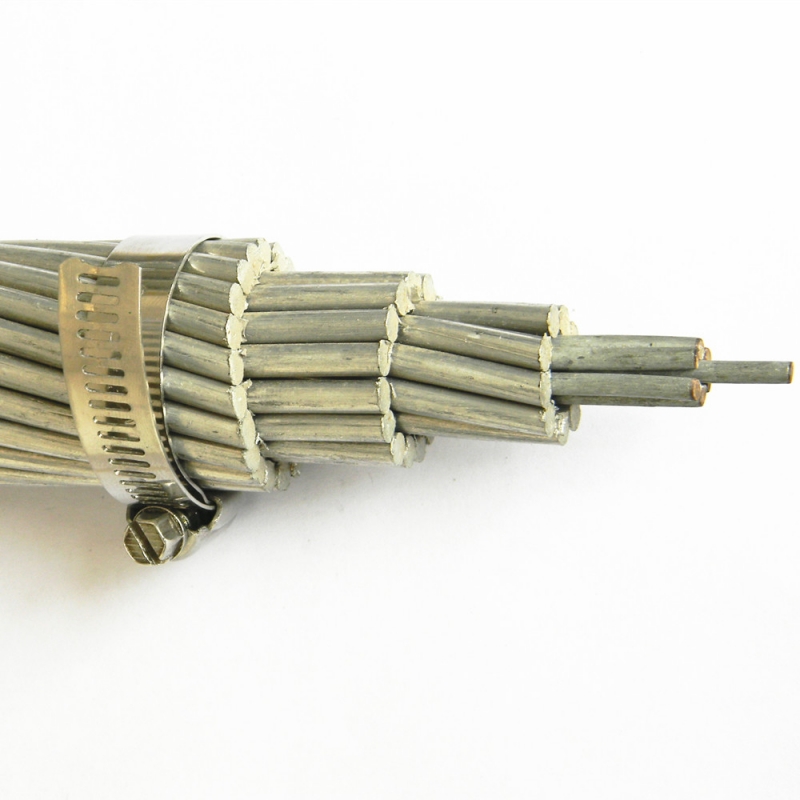

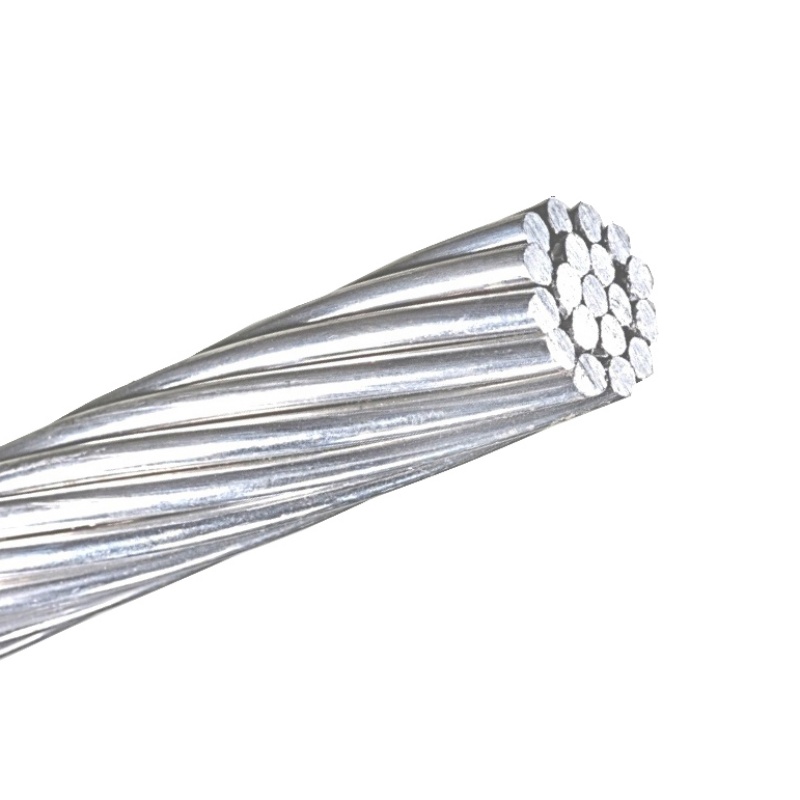

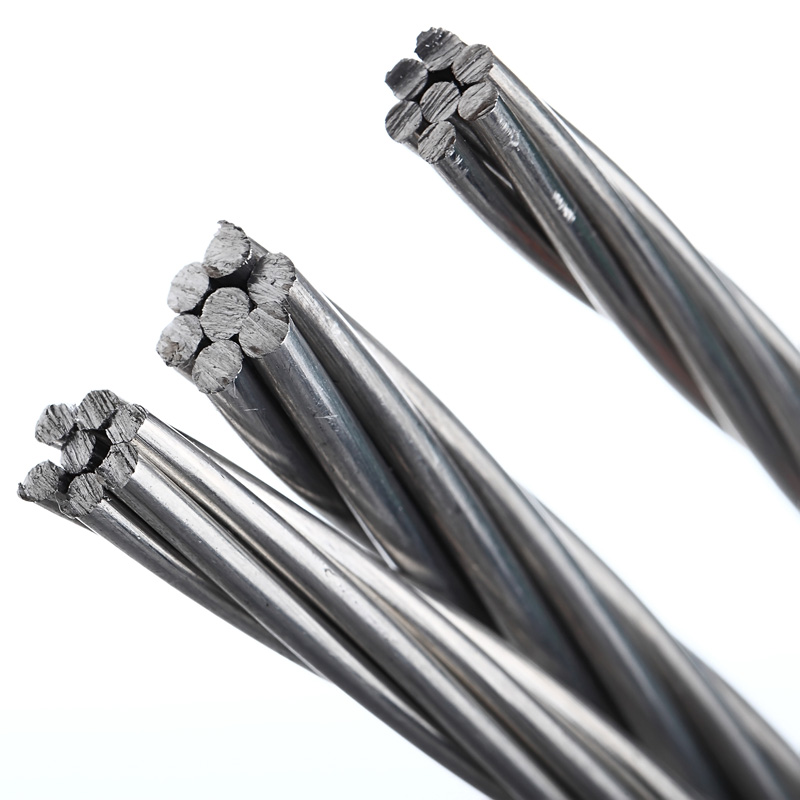

AAAC Conductor (IEC 61089)

Hits : Print

1 / 4

2 / 4

3 / 4

4 / 4

< >

Application: Used as overhead power transmission and distribution lines.
2.Structure: Material: Aluminium-Magnesium-Silicon Alloy Wire A3 Concentrically Stranded.
Direction of lay of the outer layer: Right-hand.

* Sizes: from 16mm2 to 1120mm2.

3.Standard: IEC 61089: Round Wire Concentric Lay Overhead Electric Stranded Conductors.

IEC 60104: Aluminium-Magnesium-Silicon Alloy Wire For Overhead Line Conductors

Code name		No. of strands	OD of wire	OD of conductor	Linear Mass	Breaking Load
/	mm2	No.s	mm	mm	Kg/km	KN
16	18.6	7	1.68	5.04	42.7	4.92
25	29.0	7	2.12	6.35	67.56	7.83
40	46.5	7	2.67	8.02	107.5	12.50
63	73.2	7	3. 37	10.11	171	19.79
100	11.0	7	3.78	11.35	215.16	23.98
125	145.0	7	4.25	12.75	271.5	30.17
160	18.0	7	4.77	14.3	342.6	38.07
200	232.0	19	3.26	16.31	434	48.76
250	290.0	19	3.66	18.31	547.4	58.96
315	366.0	19	3.98	19.89	645.7	69.55
400	465.0	19	4.36	21.79	776.3	83.55
450	523.0	19	4.71	23.55	970.6	97.43
500	581.0	37	3.59	25.15	1028	107.93
560	651.0	37	4.02	28.14	1287	135.91
630	732.0	7	1.68	5.04	42.7	4.92
710	825.0	7	2.12	6.35	67.56	7.83
800	930.0	7	2.67	8.02	107.5	12.50
900	1046.0	7	3. 37	10.11	171	19.79
1000	1162.0	7	3.78	11.35	215.16	23.98
1120	1301.0	7	4.25	12.75	271.5	30.17
*Other sizes are also available
