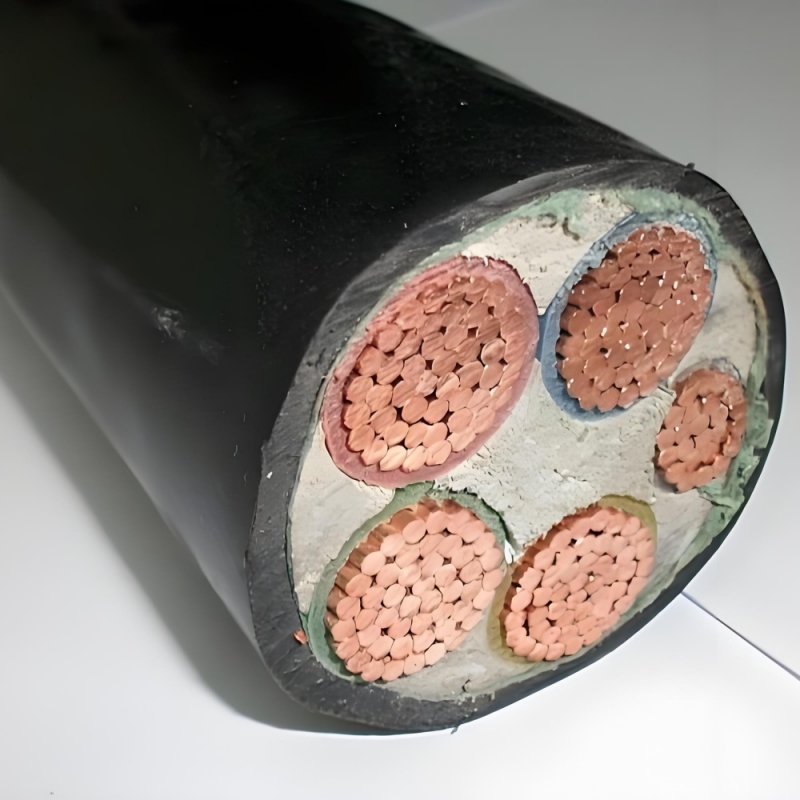

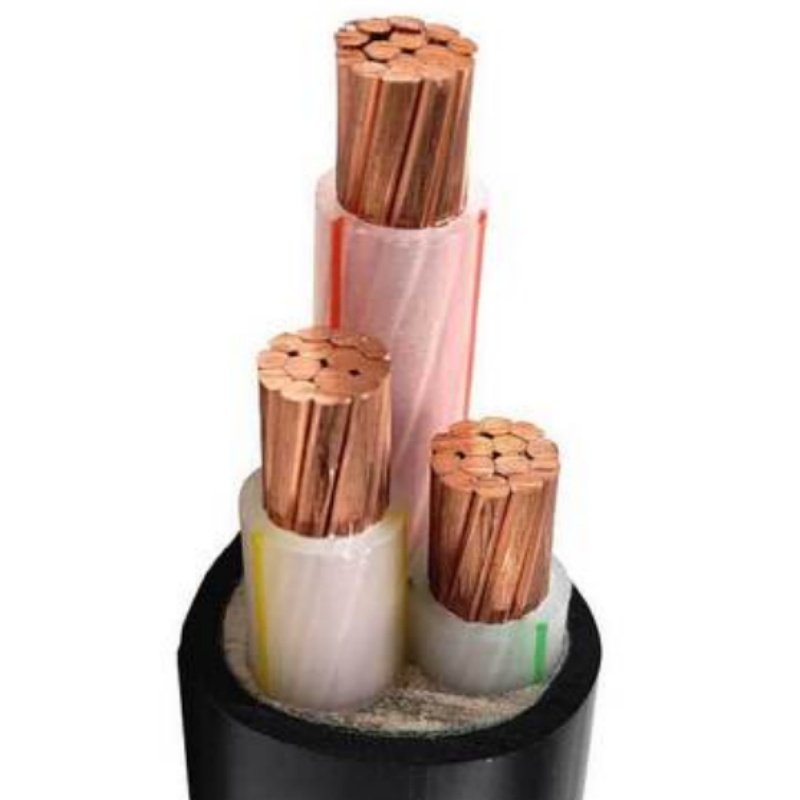

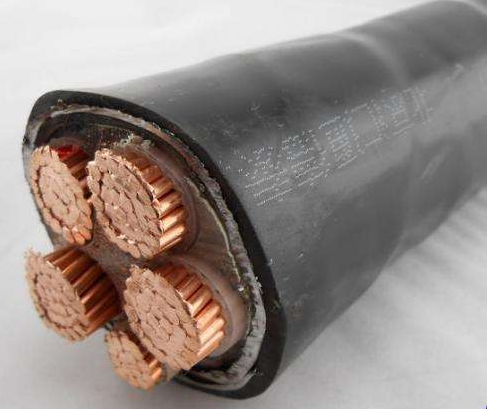

0.6/1KV Power Cables un-armoured

1. Applications: used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

2. Standard: IEC 60502-1, IEC60228;

3. Structure:

Conductor: Stranded annealed copper or aluminium conductor, class 2, according to IEC60228;

Insulation: XLPE (cross-linked polyethylene)

Filler: PP ropes

Wrapping: no woven cloth tape

Sheath: PVC, PE, or LSZH PO. Black color.

Red color, Sun-light resistant, flame retardant, fire resistant or protection against termites is optional

4. Voltage: 0.6/1KV

5. Working temperature: Max. conductor temperature at normal operation: 90℃

Max. conductor temperature at short circuit(Max. 5s duration): 250℃

6. Minimum bending radius: for single conductor cable, 20XOD of cable;

For multi-conductor cable, 15XOD of cable;

Number of Conductor	Conductor size	Min. No. of wires in cond.	Insulation thickness	Nominal sheath thickness	Overall diameter App.	Approx. weight [kg/km]
Nos	mm2	Nos	[mm]	[mm]	[mm]	CU	AL
1	1.5	7	0.7	1.4	5.8	49	40
1	2.5	7	0.7	1.4	6.3	62	47
1	4	7	0.7	1.4	6.8	80	55
1	6	7	0.7	1.4	7.4	103	66
1	10	7	0.7	1.4	8.3	146	85
1	16	7	0.7	1.4	9.3	208	111
1	25	7	0.9	1.4	10.7	304	152
1	35	7	0.9	1.4	11.7	402	188
1	50	7	1.0	1.4	13.1	551	245
1	70	19	1.1	1.4	15.0	750	322
1	95	19	1.1	1.5	16.9	996	415
1	120	19	1.2	1.5	18.5	1237	504
1	150	19	1.4	1.6	20.5	1541	625
1	185	37	1.6	1.6	22.8	1888	758
1	240	37	1.7	1.7	25.6	2425	959
1	300	37	1.8	1.8	28.2	3006	1174
1	400	60	2.0	1.9	31.6	3965	1522
1	500	60	2.2	2.0	35.2	4934	1880
1	630	60	2.4	2.2	39.6	6204	2356
2	1.5	7	0.7	1.8	10.1	120	101
2	2.5	7	0.7	1.8	11.0	150	119
2	4	7	0.7	1.8	12.0	191	142
2	6	7	0.7	1.8	13.1	242	169
2	10	7	0.7	1.8	14.9	340	219
2	16	7	0.7	1.8	17.0	480	285
2	25	7	0.9	1.8	19.8	695	391
2	35	7	0.9	1.8	21.8	908	483
2	50	10	1.0	1.8	20.0	1125	517
2	70	14	1.1	1.8	23.0	1535	684
2	95	19	1.1	1.8	25.8	2040	884
2	120	24	1.2	2.0	28.4	2544	1084
2	150	30	1.4	2.1	32.5	3193	1369
2	185	37	1.6	2.2	34.9	3883	1633
2	240	48	1.7	2.3	39.0	4989	2070
2	300	61	1.8	2.5	42.8	6176	2527
3	1.5	7	0.7	1.8	10.6	141	114
3	2.5	7	0.7	1.8	11.5	181	135
3	4	7	0.7	1.8	12.6	236	163
3	6	7	0.7	1.8	13.9	309	199
3	10	7	0.7	1.8	15.8	444	261
3	16	7	0.7	1.8	18.1	639	347
3	25	7	0.9	1.8	21.1	939	483
3	35	7	0.9	1.8	23.2	1242	604
3	50	10	1.0	1.8	23.6	1638	726
3	70	14	1.1	1.9	27.5	2259	982
3	95	19	1.1	2.0	30.5	2983	1249
3	120	24	1.2	2.1	34.1	3743	1554
3	150	30	1.4	2.3	38.4	4688	1951
3	185	37	1.6	2.4	42.7	5769	2394
3	240	48	1.7	2.6	47.5	7399	3021
3	300	61	1.8	2.8	52.6	9190	3717
4	1.5	7	0.7	1.8	11.4	172	135
4	2.5	7	0.7	1.8	12.4	223	162
4	4	7	0.7	1.8	13.7	297	200
4	6	7	0.7	1.8	15.1	391	246
4	10	7	0.7	1.8	17.2	569	326
4	16	7	0.7	1.8	19.8	829	440
4	25	7	0.9	1.8	23.1	1227	619
4	35	7	0.9	1.8	25.5	1632	781
4	50	10	1.0	1.9	26	2127	910
4	70	14	1.1	2.0	30	2938	1235
4	95	19	1.1	2.1	34	3916	1605
4	120	24	1.2	2.3	38	4907	1988
4	150	30	1.4	2.4	42	6118	2453
4	185	37	1.6	2.6	47	7552	3052
4	240	48	1.7	2.8	53	9711	3873
4	300	61	1.8	3.0	58	12041	4744
The overall diameter&weight only for reference shall be subjected to actual production.

Conductor:	Stranded annealed copper or aluminium conductor
Insulation	XLPE (cross-linked polyethylene)
Filler	PP ropes
Voltage	0.6/1KV
Working temperature	Max.90℃
Minimum bending radius	15XOD of cable for single-core; for multi-conductor cable, 12XOD of cable.
Wrapping	no woven cloth tape
Sheath	PVC, PE, or LSZH PO. Black color.
