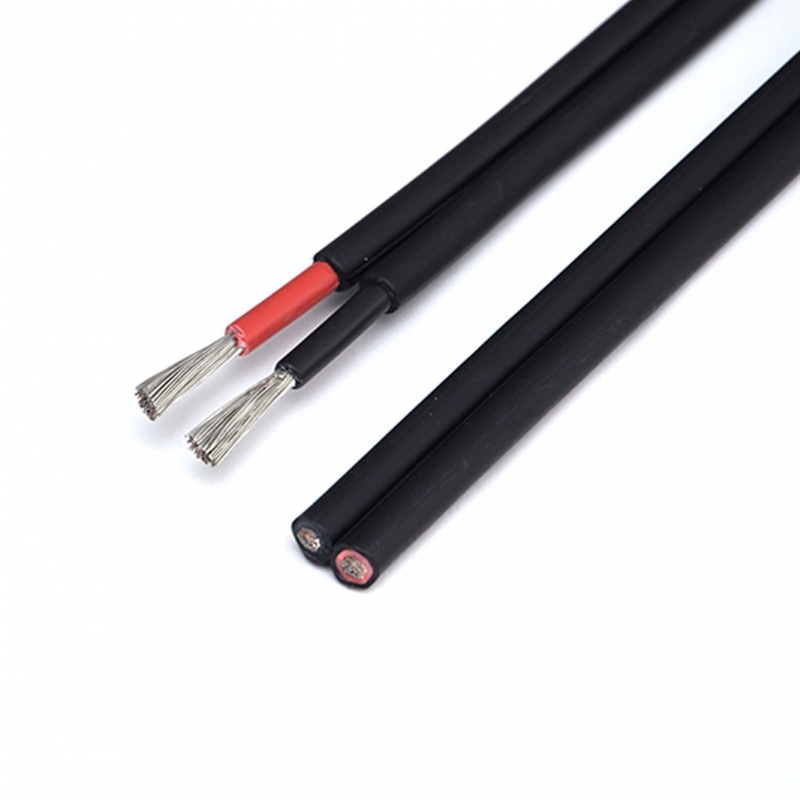

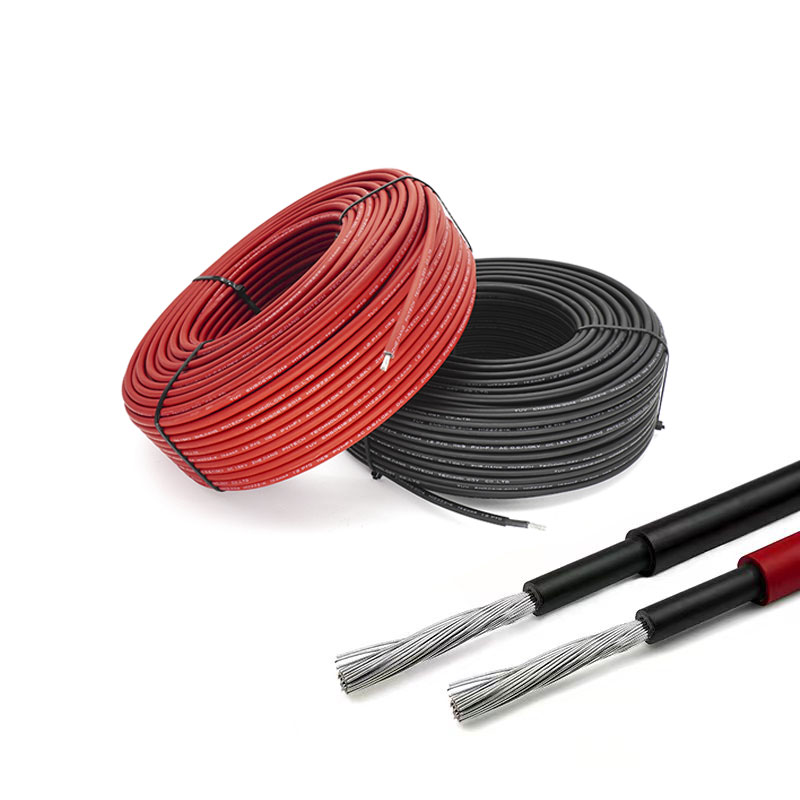

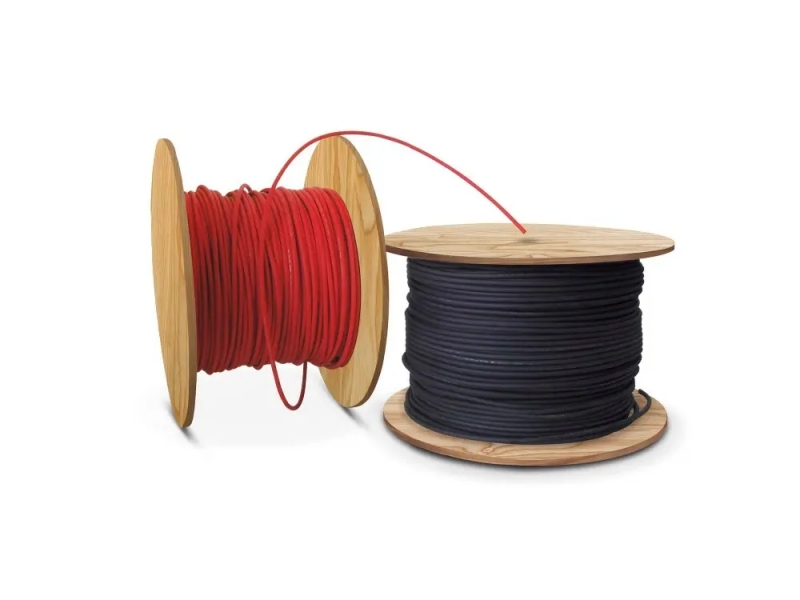

Solar Cable type H1Z2Z2-K

Applications:

used for interconnecting power supplies within renewable energy photovoltaic systems, such as solar panel arrays in solar energy farms. These solar panel cables are suitable for fixed installations, both internal and external, and within conduits or systems.

Structure:

1. Conductor: Tinned soft copper wires, class 5, according to EN/IEC 60228;

2. Insulation: Cross-linked polyolefin, low smoke zero halogen(LSZH)

3. Jacket: Cross-linked polyolefin, low smoke zero halogen(LSZH)

 Standards: EN50618

 Voltage: DC 1.5KV, AC1.0/1.0KV

 Working temperature:

Max. conductor temperature: 120℃

Ambient temperature: -40 to +90.

Demensions:
Conductor size	Max. diameter of single wire in cond.	Insulation thickness	Jacket thickness	Approx. OD of cable	Approx  weight of cable	Max.  DC resistance of conductor @20℃
[MM2]	[MM]	[MM]	[MM]	[MM]	[KG/KM]	[Ω/KM]
1X1.5	0.26	0.7	0.8	4.6	33	13.70
1X2.5	0.26	0.7	0.8	5	43	8.21
1X4.0	0.31	0.7	0.8	5.6	58	5.09
1X6.0	0.31	0.7	0.8	6.3	78	3.39
1X10	0.41	0.7	0.8	7.4	117	1.950
1X16	0.41	0.7	0.9	8.6	179	1.240
1X25	0.41	0.9	1.0	11.1	273	0.795
1X35	0.41	0.9	1.1	13.0	397	0.565
1X50	0.41	1	1.2	15.1	527	0.3930
1X70	0.51	1.1	1.2	17.2	722	0.2770
1X95	0.51	1.1	1.3	18.6	925	0.2100
1X120	0.51	1.2	1.3	20.6	1162	0.1640
1X150	0.51	1.4	1.4	23.4	1460	0.1320
1X185	0.51	1.6	1.6	25.5	1781	0.1080
1X240	0.51	1.7	1.7	28.7	2312	0.0817
