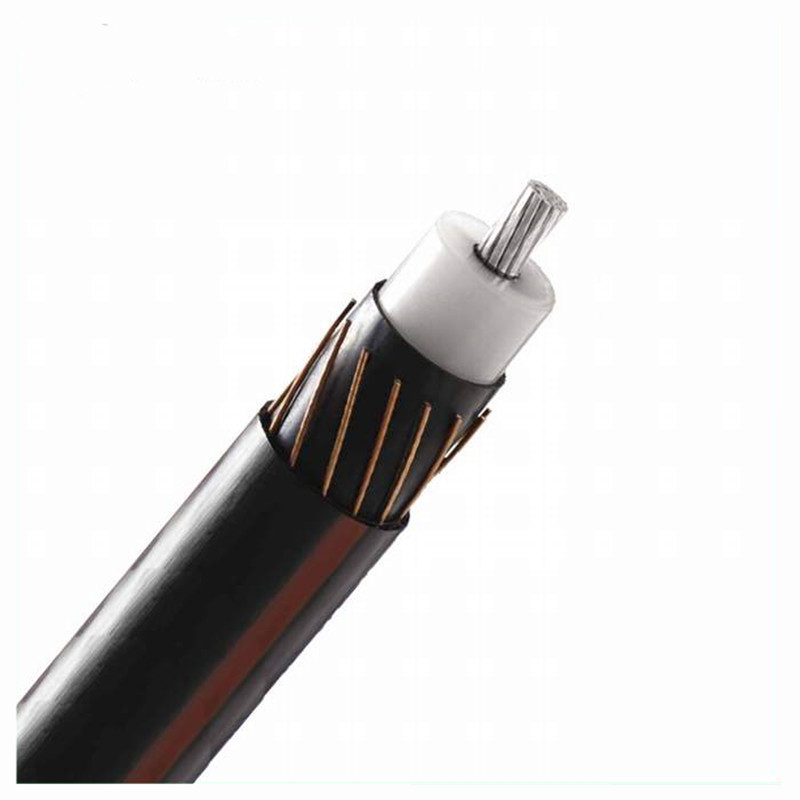

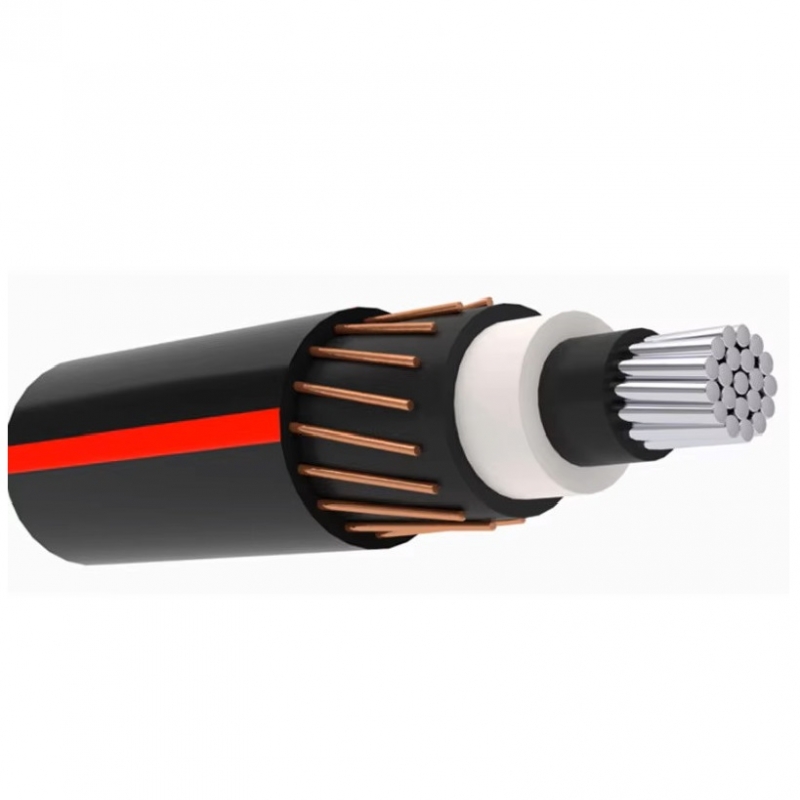

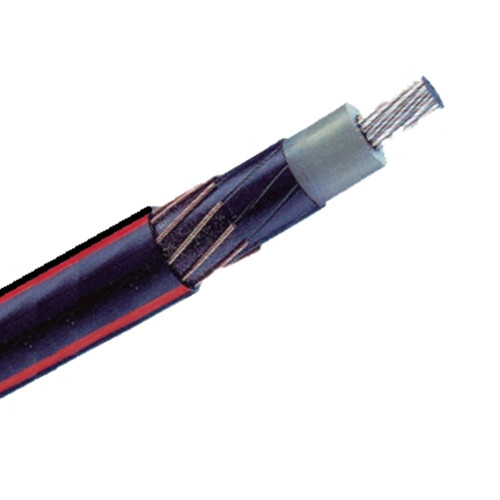

MV URD Power Cable with copper tape screen

1. Application: For use in underground residential distribution, as primary power cable in single-phase systems direct buried or underground in duct.

2. Structure:

Conductor: single conductor, annealed copper or aluminium conductor, class B;

          longitudinal water-resistant yarns between the interstices of wires is optional.

Conductor screen: Semi-conducting compound

Insulation: TR-XLPE

Insulation screen: Semi-conducting compound

Concentric Neutral: Helically applied soft drawn bare copper concentric neutral wires, 100%(full), 1/3, 1/6, 1/8, 1/12, etc.

Jacket: black sunlight linear low density polyethylene(LLDPE) encapsulating the neutral wires The jacket shall have three extruded red stripes (120 degrees apart) for identification.

3. Standard: UL1072, ICEA S-94-649, AEIC CS8

4. Voltage: 5KV, 8KV, 15KV, 25KV, 28KV, 35KV, 46KV, 100% and 133% insulation level.

5. Working temperature: Max. conductor temperature at normal operation: 90℃

6. Minimum bending radius: 8XOD of cable

AL conductor 100% insulation level, with 1/3 neutral conductor
Voltage	Conductor  size	No.  of wires in cond.	Insulation thickness	Neutral conductor		Jacket thickness	Approx. overall diameter	Approx. weight
KV	AWG/MCM	Nos	[mm]	Nos of wires	OD of wire [mm]	[mm]	[mm]	[Kg/Km]
5KV	2	7	2.29	6	1.29	1.40	19.9	451
5KV	1/0	19	2.29	6	1.63	1.40	22.5	612
5KV	2/0	19	2.29	11	1.29	1.40	22.9	667
5KV	3/0	19	2.29	14	1.29	1.40	24.2	780
5KV	4/0	19	2.29	11	1.63	1.40	26.3	937
5KV	250	37	2.29	13	1.63	1.40	27.4	1059
5KV	350	37	2.29	18	1.63	1.40	30.0	1344
5KV	500	37	2.29	16	2.05	1.40	33.9	1792
5KV	750	61	2.29	15	2.59	1.40	40.4	2622
8KV	2	7	2.92	6	1.29	1.40	19.9	453
8KV	1/0	19	2.92	6	1.63	1.40	22.5	616
8KV	2/0	19	2.92	11	1.29	1.40	22.9	671
8KV	3/0	19	2.92	14	1.29	1.40	24.2	780
8KV	4/0	19	2.92	11	1.63	1.40	26.3	937
8KV	250	37	2.92	13	1.63	1.40	27.4	1059
8KV	350	37	2.92	18	1.63	1.40	30.0	1344
8KV	500	37	2.92	16	2.05	1.40	33.9	1792
8KV	750	61	2.92	15	2.59	1.40	40.4	2622
15KV	2	7	4.45	6	1.29	1.40	26.8	782
15KV	1/0	19	4.45	6	1.63	1.40	27.2	840
15KV	2/0	19	4.45	11	1.29	1.40	28.5	957
15KV	3/0	19	4.45	14	1.29	1.40	30.6	1127
15KV	4/0	19	4.45	11	1.63	1.40	31.7	1256
15KV	250	37	4.45	13	1.63	1.40	34.8	1591
15KV	350	37	4.45	18	1.63	1.40	38.8	2069
15KV	500	37	4.45	16	2.05	2.03	46.0	2995
15KV	750	61	4.45	15	2.59	2.03	49.7	3699
25KV	1/0	19	6.60	6	1.63	1.40	31.1	976
25KV	2/0	19	6.60	11	1.29	1.40	31.5	1036
25KV	3/0	19	6.60	14	1.29	1.40	32.8	1162
25KV	4/0	19	6.60	11	1.63	1.40	35.4	1379
25KV	250	37	6.60	13	1.63	1.40	36.5	1517
25KV	350	37	6.60	18	1.63	1.40	39.1	1838
25KV	500	37	6.60	16	2.05	2.03	44.3	2428
25KV	750	61	6.60	15	2.59	2.03	50.3	3314
35KV	1/0	19	8.76	6	1.63	1.40	35.8	1228
35KV	2/0	19	8.76	11	1.29	1.40	36.4	1291
35KV	3/0	19	8.76	14	1.29	1.40	37.7	1422
35KV	4/0	19	8.76	11	1.63	1.40	39.7	1623
35KV	250	37	8.76	13	1.63	1.40	40.8	1771
35KV	350	37	8.76	18	1.63	2.03	44.7	2194
35KV	500	37	8.76	16	2.05	2.03	48.6	2731
35KV	750	61	8.76	15	2.59	2.03	55.1	3735
AL conductor 133% insulation level, with full neutral conductor
Voltage	Conductor  size	No.  of wires in cond.	Insulation thickness	Neutral conductor		Jacket thickness	Approx. overall diameter	Approx. weight
KV	AWG/MCM	Nos	[mm]	Nos of wires	OD of wire [mm]	[mm]	[mm]	[Kg/Km]
5KV	2	7	2.92	10	1.63	1.40	21.8	627
5KV	1/0	19	2.92	10	2.05	1.40	24.6	867
5KV	2/0	19	2.92	13	2.05	1.40	25.7	1019
5KV	3/0	19	2.92	16	2.05	1.40	27.0	1183.8
5KV	4/0	19	2.92	13	2.59	1.40	29.5	1461
5KV	250	37	2.92	15	2.59	1.40	30.6	1642
5KV	350	37	2.92	21	2.59	1.40	33.2	2119
5KV	500	37	2.92	24	2.91	1.40	37.4	2897
5KV	750	61	2.92	28	3.26	2.03	44.2	4187
15KV	2	7	5.59	10	1.63	1.40	27.1	831
15KV	1/0	19	5.59	10	2.05	1.40	29.9	1094
15KV	2/0	19	5.59	13	2.05	1.40	31.0	1254
15KV	3/0	19	5.59	16	2.05	1.40	32.3	1429
15KV	4/0	19	5.59	13	2.59	1.40	34.8	1727
15KV	250	37	5.59	15	2.59	1.40	36.4	1951
15KV	350	37	5.59	21	2.59	1.40	39.0	2451
15KV	500	37	5.59	24	2.91	2.03	44.0	3313
15KV	750	61	5.59	28	3.26	2.03	49.6	4572
25KV	1/0	19	8.13	10	2.05	1.40	35.0	1349
25KV	2/0	19	8.13	13	2.05	1.40	36.6	1552
25KV	3/0	19	8.13	16	2.05	1.40	37.9	1739
25KV	4/0	19	8.13	13	2.59	1.40	40.4	2057
25KV	250	37	8.13	15	2.59	1.40	41.5	2257
25KV	350	37	8.13	21	2.59	2.03	45.4	2865
25KV	500	37	8.13	24	2.91	2.03	49.1	3676
25KV	750	61	8.13	28	3.26	2.03	55.4	5059
35KV	1/0	19	10.67	10	2.05	1.40	40.6	1681
35KV	2/0	19	10.67	13	2.05	1.40	41.7	1859
35KV	3/0	19	10.67	16	2.05	2.03	44.3	2141
35KV	4/0	19	10.67	13	2.59	2.03	46.7	2484
35KV	250	37	10.67	15	2.59	2.03	47.8	2694
35KV	350	37	10.67	21	2.59	2.03	50.4	3239
35KV	500	37	10.67	24	2.91	2.03	54.9	4159
35KV	750	61	10.67	28	3.26	2.03	60.5	5511
Other sizes*voltage with other nuetral conductor section are also available.
