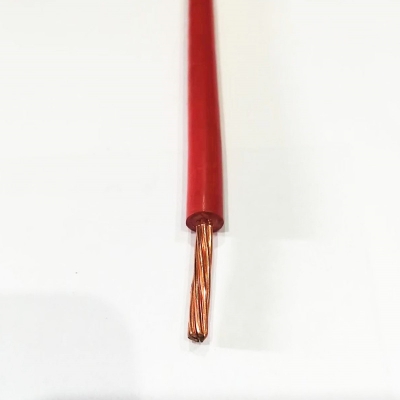

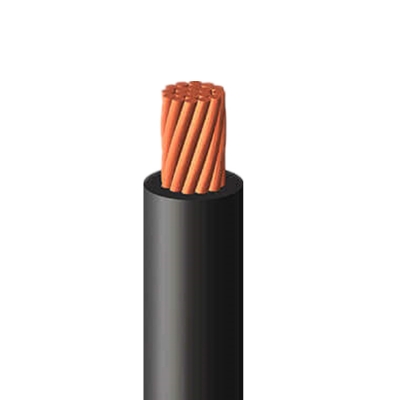

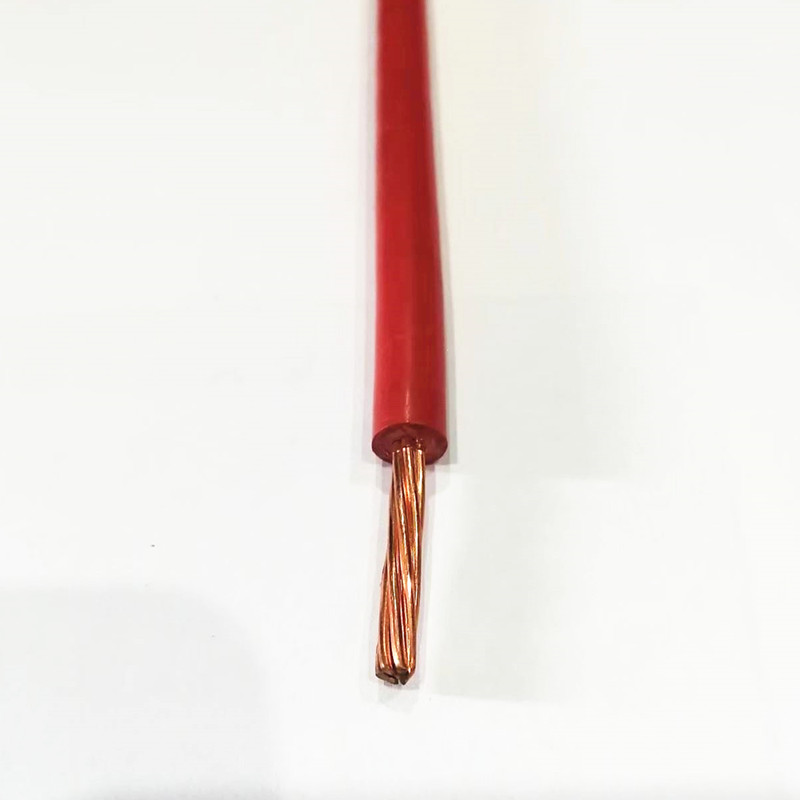

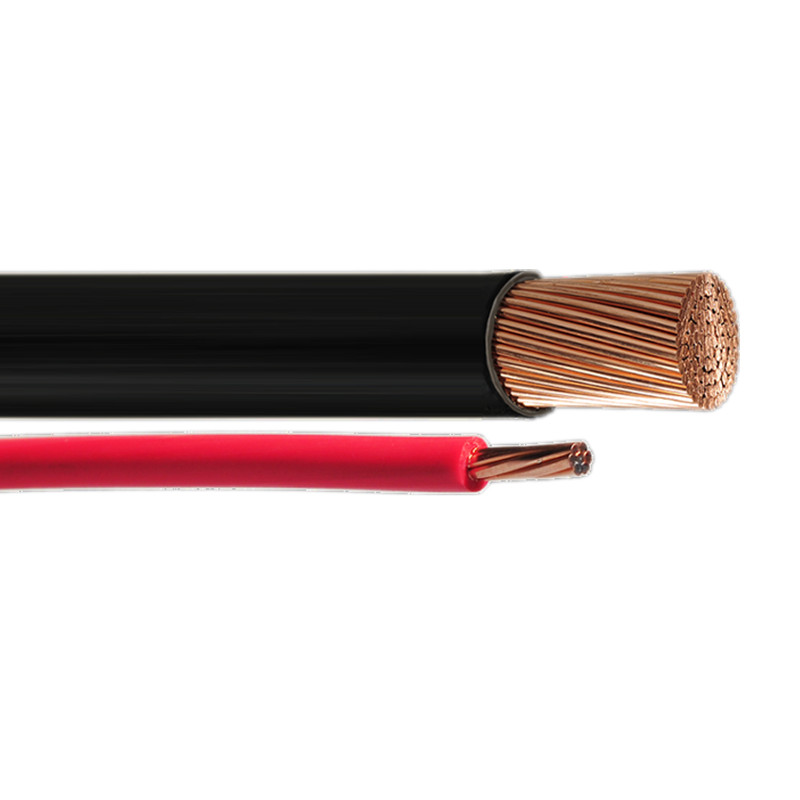

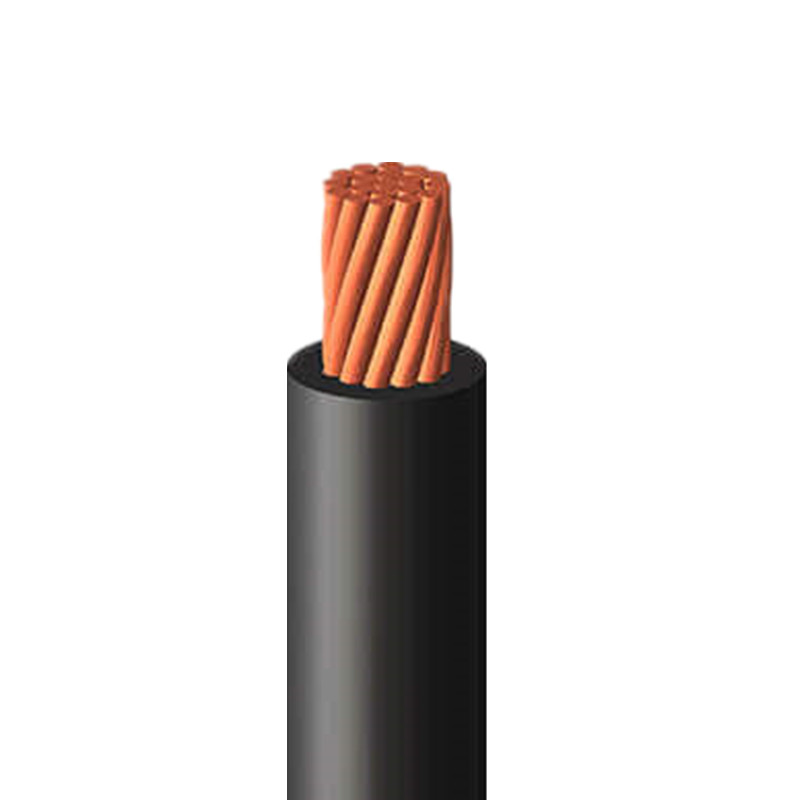

1000/2000V PV Wire

Application:

For exposed wiring and raceways for interconnection of solar photovoltaic systems, in wet and dry locations. Or for direct earth burial.

Structure:

1. Conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B.

2. Insulation: Heat and moisture resistant, low temperature Cross-Linked Polyethylene (XLPE)

 Color: Black or red, other colours available upon request.

Standard: UL4703

Working temperature:-40℃ to +90℃

Voltage:1000V, 2000V

Min. Bending radius: 20X OD of cable

Aluminium alloy 8000 series conductor:
Conductor size	No.  of wires in cond.	Insulation thickness	Approx. OD of cable	Approx  weight of cable	Max.  DC resistance of conductor @20℃
AWG/MCM	[Nos]	[MM]	[MM]	[KG/KM]	[Ω/KM]
6	7	2.15	8.7	83	2.210
4	7	2.15	9.7	113	1.390
3	7	2.15	10.2	133	1.100
2	7	2.15	11.1	158	0.875
1	18	2.66	12.9	207	0.693
1/0	18	2.66	13.9	244	0.550
2/0	18	2.66	14.9	290	0.436
3/0	19	2.66	16.1	348	0.346
4/0	19	2.66	17.4	417	0.274
250	36	3.04	19.3	504	0.232
300	36	3.04	20.6	583	0.194
350	36	3.04	21.7	660	0.166
400	36	3.04	22.8	740	0.145
500	36	3.04	24.8	894	0.1160
600	60	3.43	27.2	1083	0.0967
750	60	3.43	29.8	1312	0.0774
1000	58	3.43	33.4	1687	0.0580
1250	91	3.94	39.1	2158	0.0464
Copper conductor:
Conductor size	No.  of wires in cond.	Insulation thickness	Approx. OD of cable	Approx  weight of cable	Max.  DC resistance of conductor @20℃
AWG	[Nos]	[MM]	[MM]	[KG/KM]	[Ω/KM]
1X12	7	1.52	5.3	58	5.430
1X10	7	1.52	5.9	80	3.410
1X8	7	2.03	7.6	131	2.140
