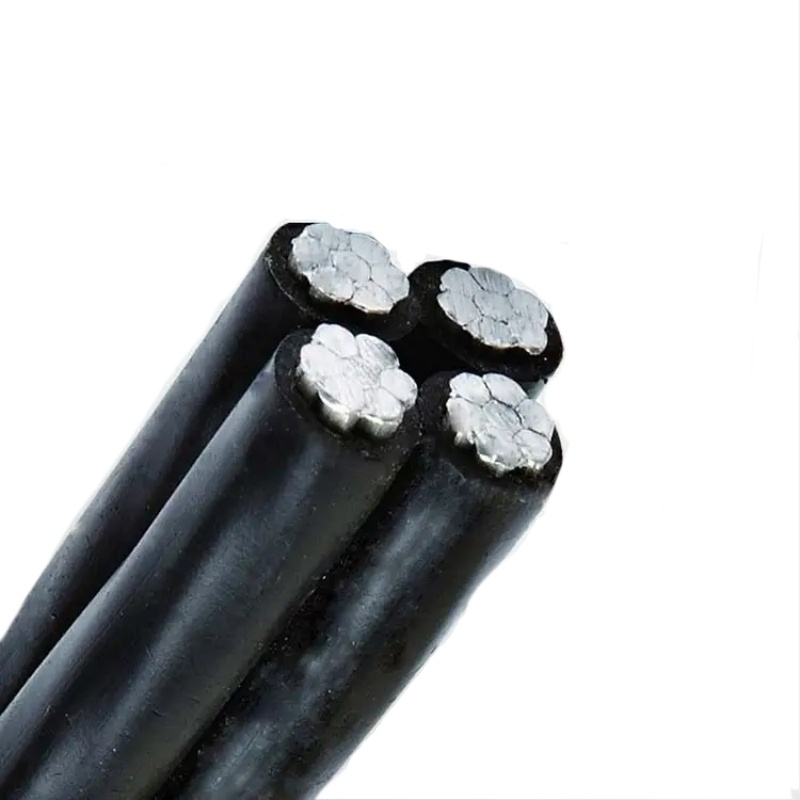

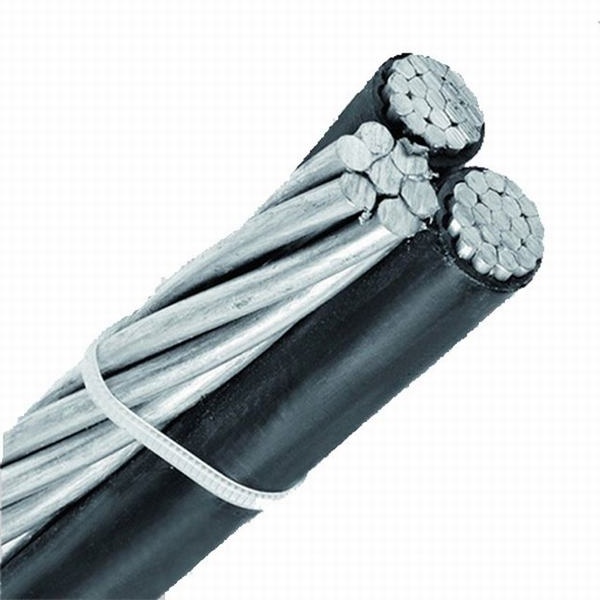

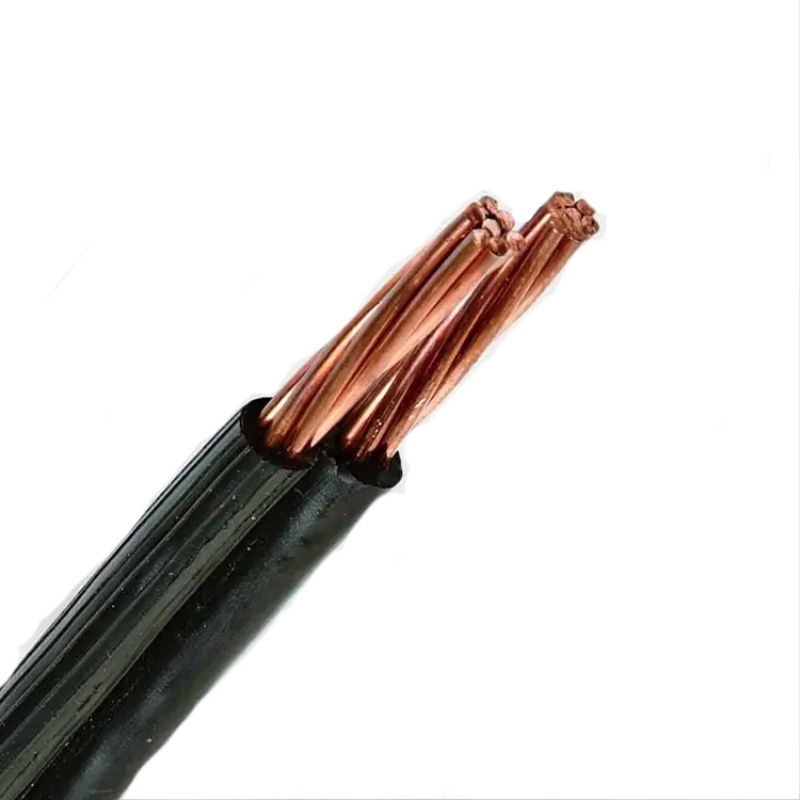

Aerial Bundle Cable (ABC)

1. Application: Aerial Bundle Cable (ABC) low voltage cable for overhead power distribution offering higher level of safety and reliability and lower power losses than bare conductors.

2. Structure:

Phase conductor: circular compacted stranded aluminium wire, class 2;

Neutral Conductor: aluminum magnesium silicon alloy wires.

Insulation: XLPE (Cross-linked polyethylene) UV Resistant, black color.

3. Standard: NF C33-209

4. Voltage: 0.6/1KV

5.Working temperature: Maximum conductor temperature in normal use: -40~+90℃

6. Minimum bending radius: 18XOD of cable;

Dimensions of cables neutral and public lignting conductors:
Number of phase Cond.	conductor size	Insulation thickness	Neutral conductor size	Public lighting conductor	Approx. OD of cable	Approx.  weight of cable	Max.  DC resistance of phase conductor @20℃
[Nos]	[MM2]	[MM]	[MM2]	[MM2]	[MM]	[kg/km]	[Ω/KM]
3	25	1.4	54.6	16	25.7	577	1.200
3	35	1.6	54.6	16	28.0	690	0.868
3	50	1.6	54.6	16	29.8	829	0.641
3	70	1.8	54.6	16	33.2	1043	0.443
3	95	1.8	54.6	16	35.9	1275	0.320
3	95	1.8	70	16	37.5	1364	0.320
3	120	1.8	54.6	16	38.2	1502	0.253
3	120	1.8	70	16	38.9	1558	0.253
3	150	2.0	70	16	42.2	1864	0.206
3	150	2.0	95	16	43.3	1944	0.206
