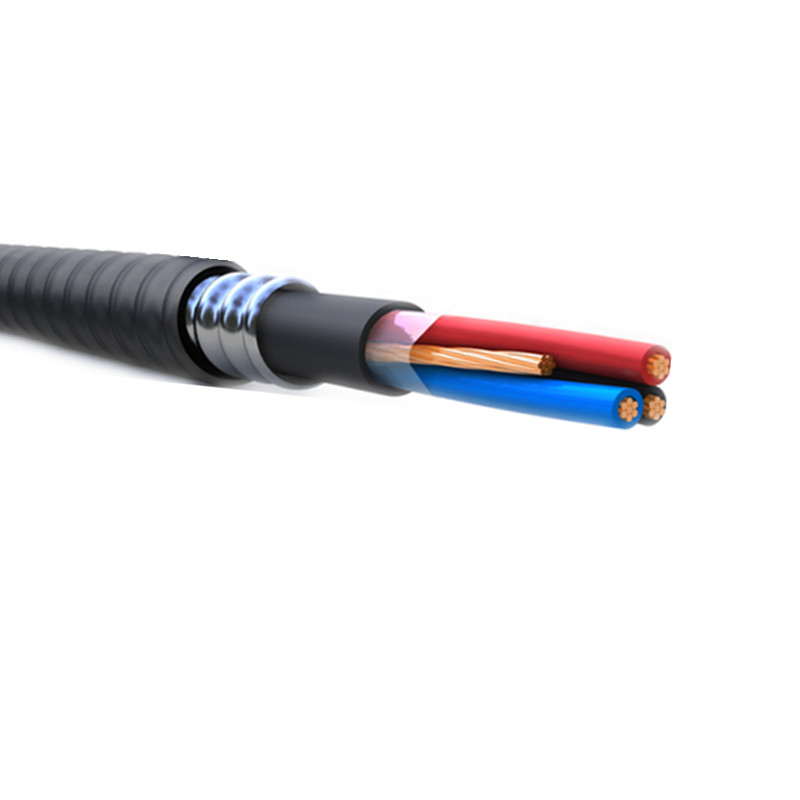

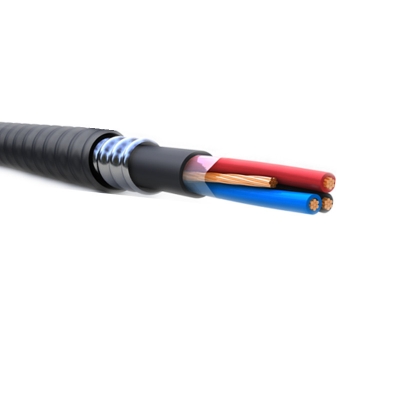

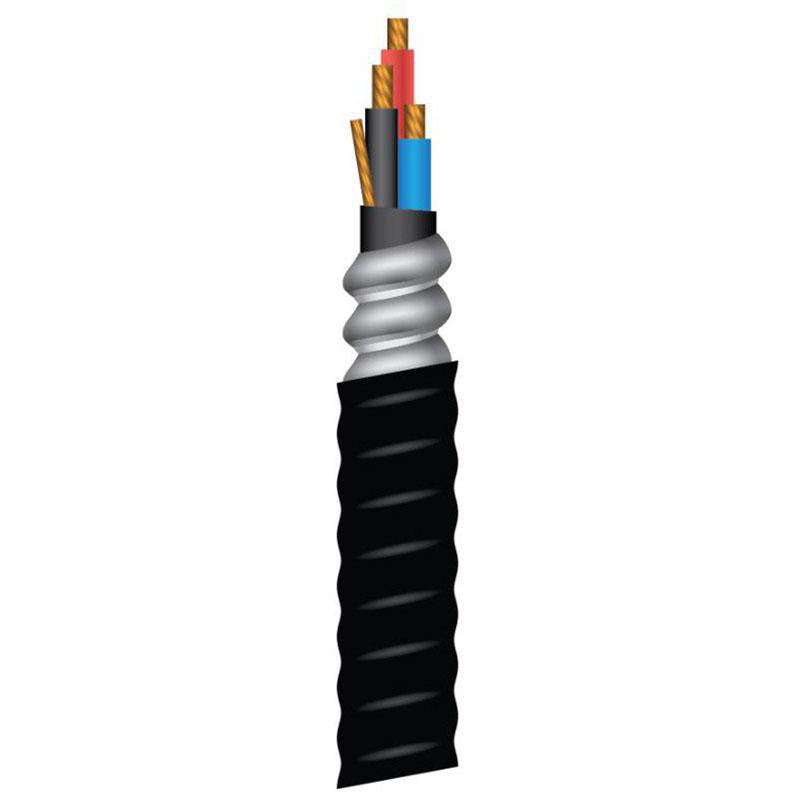

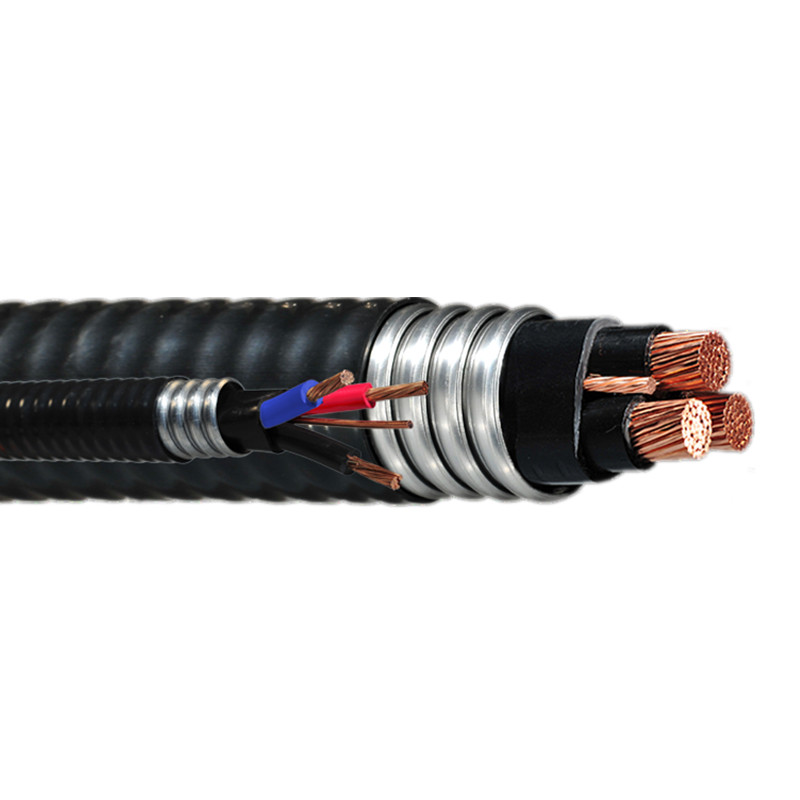

Aluminium tape Interlock armor metal clad TECK Cable

1. Application:

For use in exposed or concealed wiring in dry or wet locations, in ventilated or ladder type cable trays in dry or wet conditions, on walls or beams, or directly buried.

For use in hazardous locations: Class I - Groups A, B, C and D, Class II - Groups E, F and G, Class III - All Groups

2. Structure:

1). Conductor: annealed bare copper wires, or aluminum alloy 8000 series wires, class B.

2). Insulation: Cross-linked Polyethylene (XLPE)

Color: Black, white for 2 conductors;

      Black ,red, blue for 3 conductors;

      Black, red, blue, white for 4 conductors.

3). Bonding conductor: annealed bare copper wires, or aluminum alloy 8000 series wires, class B.

4). Inner Jacket: Flame-retardant and moisture resistant Polyvinyl Chloride (PVC)

5). Armour: Aluminum tape Interlock Armour (AIA); (galvanized steel tape is optional)

6). Outer-jacket: Low-temperature, moisture and sunlight resistant Polyvinyl Chloride (PVC), black color

3. Standard: ICEA S-95-658, UL1569, CSA C22.2 No. 131

4. Working temperature: -40℃ to +90℃

5. Voltage: 600V, 1000V

Demensions of 600V copper conductor:
Nos of phase Conductor	Conductor size	Insulation thickness	Bonding conductor	Jacket     thickness	Approx. OD of cable	Max.  DC resistance of conductor @20℃
[Nos]	[AWG/MCM]	[MM]	[AWG/MCM]	[MM]	[MM]	[Ω/KM]
2	14	0.76	14	1.0	15.8	8.62
2	12	0.76	14	1.0	17.1	5.43
2	10	0.76	12	1.0	18.2	3.41
2	8	1.14	10	1.0	21.7	2.14
2	6	1.14	8	1.0	23.2	1.35
2	4	1.14	8	1.0	25.8	0.848
2	3	1.14	6	1.0	27.1	0.673
2	2	1.14	6	1.0	28.6	0.534
2	1	1.4	6	1.0	31.3	0.423
2	1/0	1.4	6	1.0	34.0	0.335
2	2/0	1.4	6	1.0	35.5	0.266
2	3/0	1.4	4	1.0	37.5	0.211
2	4/0	1.4	4	1.2	41.0	0.167
2	250	1.65	4	1.2	45.1	0.142
2	300	1.65	4	1.2	46.7	0.118
2	350	1.65	3	1.2	51.1	0.101
2	400	1.65	3	1.2	53.2	0.0885
2	500	1.65	3	1.2	56.9	0.0709
2	600	2.03	2	1.5	63.4	0.0590
2	750	2.03	2	1.5	68.1	0.0472
3	14	0.76	14	1.0	16.8	8.62
3	12	0.76	14	1.0	18.1	5.43
3	10	0.76	12	1.0	18.6	3.41
3	8	1.14	10	1.0	22.1	2.14
3	6	1.14	8	1.0	23.7	1.35
3	4	1.14	8	1.0	27.1	0.848
3	3	1.14	6	1.0	28.6	0.673
3	2	1.14	6	1.0	32.7	0.534
3	1	1.4	6	1.0	34.2	0.423
3	1/0	1.4	6	1.0	35.8	0.335
3	2/0	1.4	6	1.0	37.9	0.266
3	3/0	1.4	4	1.2	41.2	0.211
3	4/0	1.4	4	1.2	43.9	0.167
3	250	1.65	4	1.2	47.2	0.142
3	300	1.65	4	1.2	51.1	0.118
3	350	1.65	3	1.2	53.4	0.101
3	400	1.65	3	1.2	56.1	0.0885
3	500	1.65	3	1.5	60.3	0.0709
3	600	2.03	2	1.5	67.0	0.0590
3	750	2.03	2	1.5	72.8	0.0472
4	14	0.76	14	1.0	17.7	8.62
4	12	0.76	14	1.0	19.1	5.43
4	10	0.76	12	1.0	21.0	3.41
4	8	1.14	10	1.0	23.5	2.14
4	6	1.14	8	1.0	26.0	1.35
4	4	1.14	8	1.0	29.6	0.848
4	3	1.14	6	1.0	33.2	0.673
4	2	1.14	6	1.0	33.0	0.534
4	1	1.4	6	1.0	35.8	0.423
4	1/0	1.4	6	1.0	39.0	0.335
4	2/0	1.4	6	1.2	41.2	0.266
4	3/0	1.4	4	1.2	43.8	0.211
4	4/0	1.4	4	1.2	48.0	0.167
4	250	1.65	4	1.2	52.8	0.142
4	300	1.65	4	1.2	56.1	0.118
4	350	1.65	3	1.2	59.5	0.101
4	400	1.65	3	1.5	62.0	0.0885
4	500	1.65	3	1.5	67.0	0.0709
4	600	2.03	2	1.5	72.6	0.0590
4	750	2.03	2	1.7	82.2	0.0472
