Application: Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design.
Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

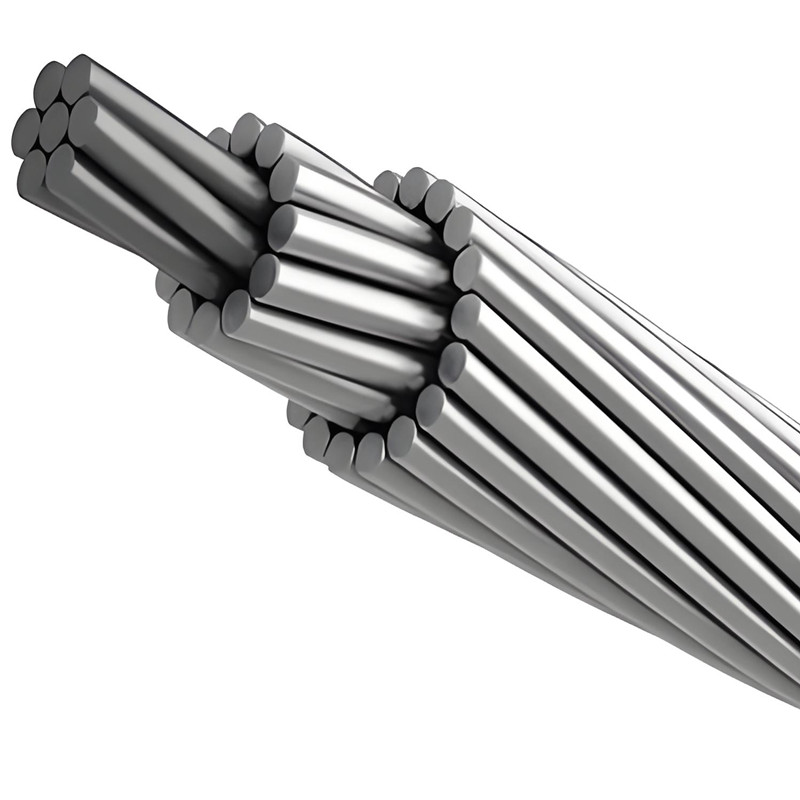

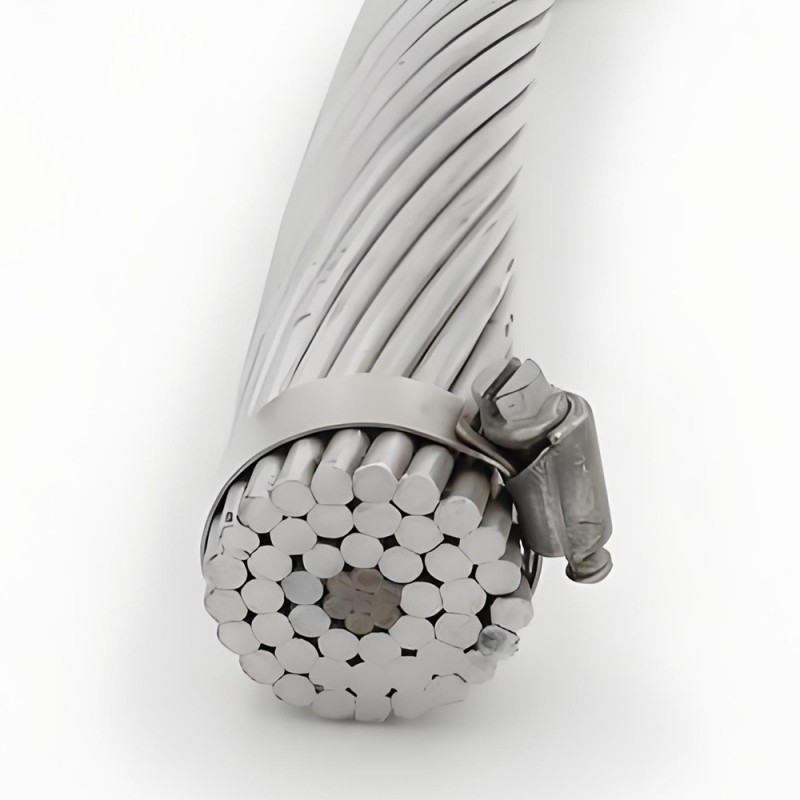

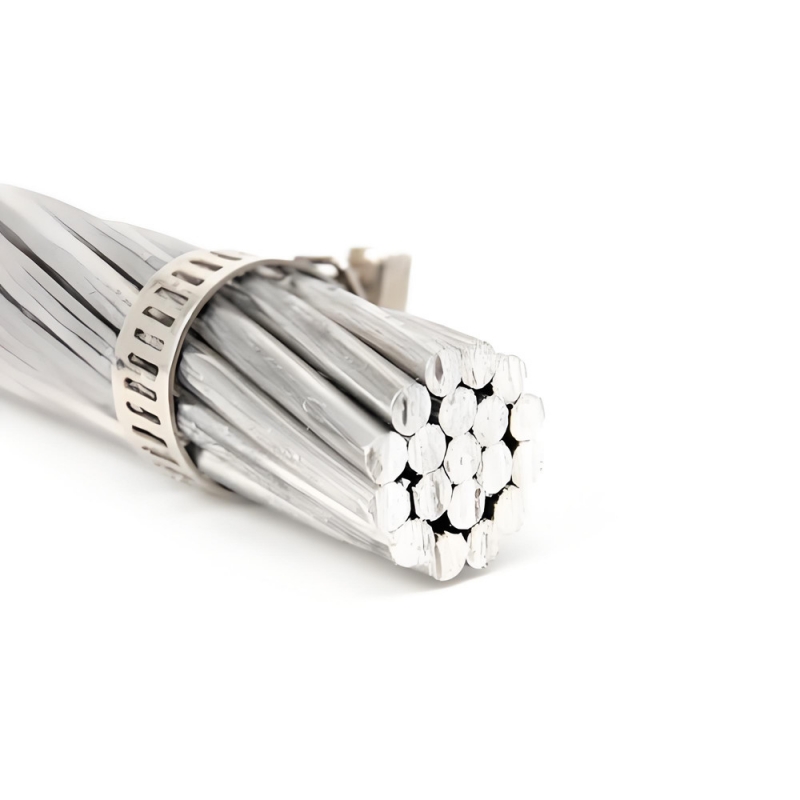

Structure: Material: A solid or concentric stranded central steel core is surrounded by one or more layers of hard drawn concentric stranded aluminum wires.
3.Standard: BS 215-2: Aluminium conductors, steel-reinforced.
BS 2627: Wrought aluminium for electrical purposes.
BS 4565: Galvanized steel wire for aluminium conductors, steel-reinforced
| Code name | Size | AL wires | Steel wire | OD of conductor | Linear Mass | breaking Load | ||
| / | mm2 | Nos | diameter (mm) | Nos | diameter (mm) | mm | Kg/km | daN |
| Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 6.33 | 85 | 788 |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 7.08 | 106 | 961 |
| Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 7.77 | 128 | 1146 |
| Fox | 35 | 6 | 2.79 | 1 | 2.79 | 8.37 | 149 | 1320 |
| Ferret | 40 | 6 | 3 | 1 | 3 | 9 | 172 | 1520 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 10.05 | 214 | 1835 |
| Mink | 60 | 6 | 3.66 | 1 | 3.66 | 10.98 | 255 | 2180 |
| Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 12.95 | 465 | 5300 |
| Beaver | 70 | 6 | 3.99 | 1 | 3.99 | 11.97 | 302 | 2570 |
| Horse | 70 | 12 | 2.79 | 7 | 2.79 | 13.95 | 538 | 6120 |
| Racoon | 75 | 6 | 4.1 | 1 | 4.1 | 12.3 | 320 | 2720 |
| Otter | 80 | 6 | 4.22 | 1 | 4.22 | 13.98 | 339 | 2880 |
| Cat | 90 | 6 | 4.5 | 1 | 4.5 | 15.9 | 386 | 3270 |
| Hare | 100 | 6 | 4.72 | 1 | 4.72 | 17.5 | 425 | 3600 |
| Dog | 100 | 6 | 4.72 | 7 | 1.57 | 14.15 | 394 | 3270 |
| Hyena | 100 | 7 | 4.39 | 7 | 1.93 | 14.57 | 450 | 4090 |
| Leopard | 125 | 8 | 5.28 | 7 | 1.75 | 15.81 | 492 | 4070 |
| Coyote | 125 | 26 | 2.54 | 7 | 1.91 | 15.89 | 522 | 4640 |
| Congar | 125 | 18 | 3.05 | 1 | 3.050 | 15.25 | 419 | 2980 |
| Tiger | 125 | 30 | 2.36 | 7 | 2.36 | 16.52 | 602 | 5800 |
| Dingo | 150 | 18 | 3.35 | 1 | 3.35 | 16.75 | 506 | 3570 |
| Wolf | 150 | 30 | 2.59 | 7 | 2.59 | 18.13 | 726 | 6920 |
| Caracal | 175 | 18 | 3.61 | 1 | 3.61 | 18.05 | 587 | 4110 |
| Lynx | 175 | 30 | 2.79 | 7 | 2.79 | 19.53 | 842 | 7980 |
| Jaguar | 200 | 18 | 3.86 | 1 | 3.86 | 19.3 | 671 | 4655 |
| Panther | 200 | 30 | 3 | 7 | 3 | 21 | 974 | 9225 |
| Lion | 225 | 30 | 3.18 | 7 | 3.18 | 22.26 | 1095 | 10060 |
| Bear | 250 | 30 | 3.35 | 7 | 3.35 | 23.45 | 1213 | 11110 |
| Goat | 300 | 30 | 3.71 | 7 | 3.71 | 25.97 | 1489 | 13570 |
| Sheep | 350 | 30 | 3.99 | 7 | 3.99 | 27.93 | 1718 | 15590 |
| Antilope | 350 | 54 | 2.97 | 7 | 2.97 | 26.73 | 1411 | 11820 |
| Bizon | 350 | 54 | 3 | 7 | 3.000 | 27.00 | 1444 | 12090 |
| Deer | 400 | 30 | 4.27 | 7 | 4.27 | 28.89 | 1971 | 17850 |
| Zebra | 400 | 54 | 3.18 | 7 | 3.18 | 28.62 | 1621 | 13190 |
| ELK | 450 | 30 | 4.5 | 7 | 4.5 | 31.5 | 2190 | 19820 |
| Camel | 450 | 54 | 3.35 | 7 | 3.35 | 30.15 | 1777 | 14570 |
| Moose | 500 | 54 | 3.53 | 7 | 3.53 | 31.77 | 1999 | 16110 |
| Finch | 500 | 54 | 3.65 | 19 | 2.29 | 33.35 | 2243 | 18070 |
