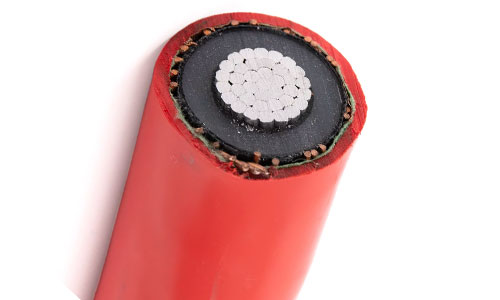

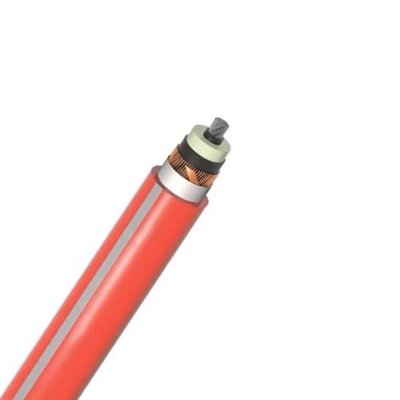

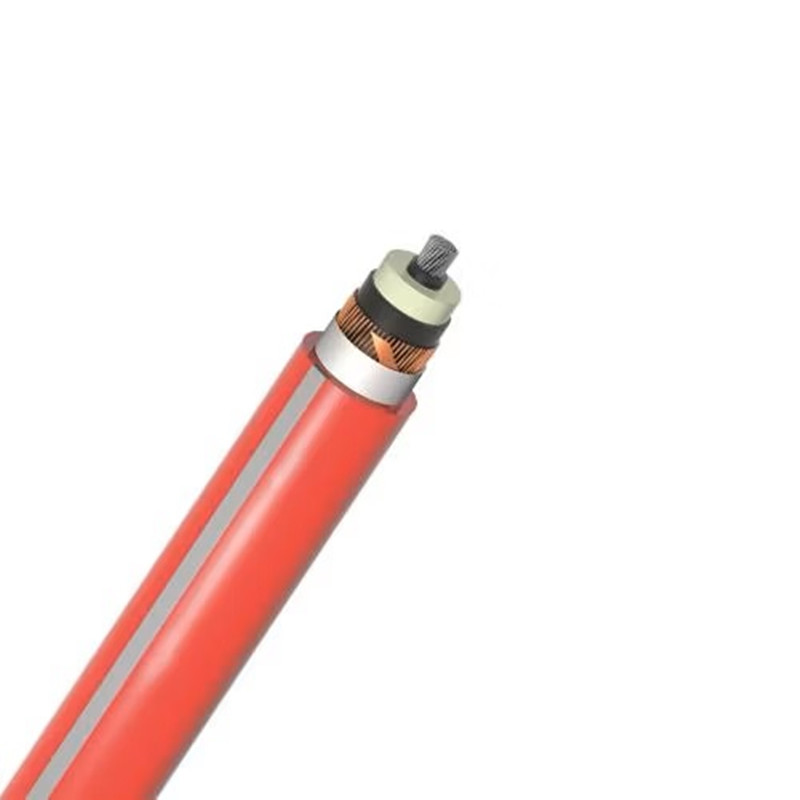

MV Power Cable AL RHZ1-2OL

1. Application: medium Voltage aluminium cable for the transmission and distribution of electricity, halogen free. Installation in open air,.buried or in conduit.

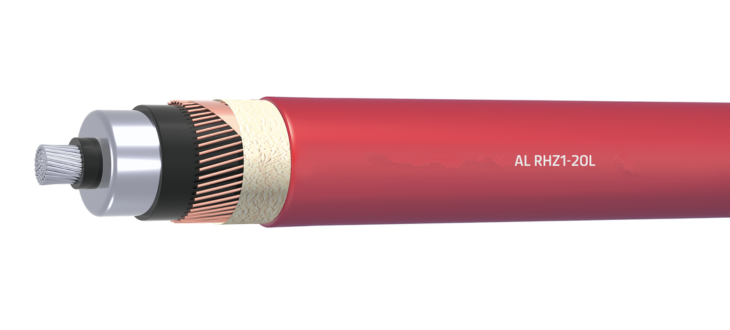

2. Structure:

Conductor: aluminium conductor, class 2, based on EN 60228/ IEC 60228, with longitudinal water-resistant yarns between the interstices of wires. Single conductor.

Conductor screen: Semi-conducting compound

Insulation: XLPE

Insulation screen: Semi-conducting compound

Metal screen: copper wires+copper tape, with a minimum cross-section of 16mm2.

Longitudinal Water-blocking:Hygroscopic tape completely covering the screen

Sheath: halogen free polyolefin, red color

3. Standard: IEC60502-2

4. Voltage: 6/10 kV, 8,7/15 kV, 12/20 kV and 18/30 kV

5. Working temperature: Max. conductor temperature at normal operation: 90℃

Max. conductor temperature at short circuit(Max. 5s duration): 250℃

6. Minimum bending radius: 15XOD of cable

Demension&Performance
Voltage	Conductor  size	No.  of wires in cond.	Insulation thickness	Copper screen area	Nominal sheath thickness	Overall diameter App.	Approx. weight
KV	mm2	Nos	[mm]	mm2	[mm]	[mm]	Kg/Km
6/10	50	7	3.4	16	1.8	23.8	683
6/10	70	14	3.4	16	1.8	25.5	781
6/10	95	19	3.4	16	1.8	27.2	892
6/10	120	19	3.4	16	1.8	28.6	994
6/10	150	30	3.4	16	1.9	30.2	1115
6/10	185	37	3.4	16	1.9	32.0	1258
6/10	240	37	3.4	16	2.0	34.6	1489
6/10	300	37	3.4	16	2.1	37.0	1727
6/10	400	60	3.4	16	2.2	40.0	2101
6/10	500	60	3.4	16	2.3	43.2	2493
8.7/15	50	7	4.5	16	1.8	26.0	769
8.7/15	70	14	4.5	16	1.8	27.7	873
8.7/15	95	19	4.5	16	1.8	29.4	989
8.7/15	120	19	4.5	16	1.9	31.0	1110
8.7/15	150	30	4.5	16	1.9	32.4	1223
8.7/15	185	37	4.5	16	2.0	34.4	1387
8.7/15	240	37	4.5	16	2.1	37.0	1628
8.7/15	300	37	4.5	16	2.1	39.2	1858
8.7/15	400	60	4.5	16	2.3	42.4	2262
8.7/15	500	60	4.5	16	2.3	45.4	2645
12/20	50	7	5.5	16	1.8	28.0	853
12/20	70	14	5.5	16	1.9	29.9	976
12/20	95	19	5.5	16	1.9	31.6	1098
12/20	120	19	5.5	16	2.0	33.2	1225
12/20	150	30	5.5	16	2.0	34.6	1343
12/20	185	37	5.5	16	2.1	36.6	1514
12/20	240	37	5.5	16	2.1	39.0	1747
12/20	300	37	5.5	16	2.2	41.4	2002
12/20	400	60	5.5	16	2.3	44.4	2397
12/20	500	60	5.5	16	2.4	47.6	2811
18/30	95	19	8.0	16	2.1	37.4	1424
18/30	120	19	8.0	16	2.2	39.1	1510
18/30	150	30	8.0	16	2.2	40.4	1697
18/30	185	37	8.0	16	2.3	44.8	2143
18/30	240	37	8.0	16	2.4	47.2	2421
18/30	300	37	8.0	16	2.5	50.2	2845
18/30	400	60	8.0	16	2.6	53.4	3020
18/30	500	60	8.0	16	2.7	55.2	3289
