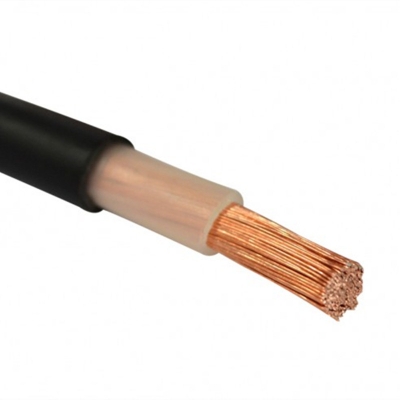

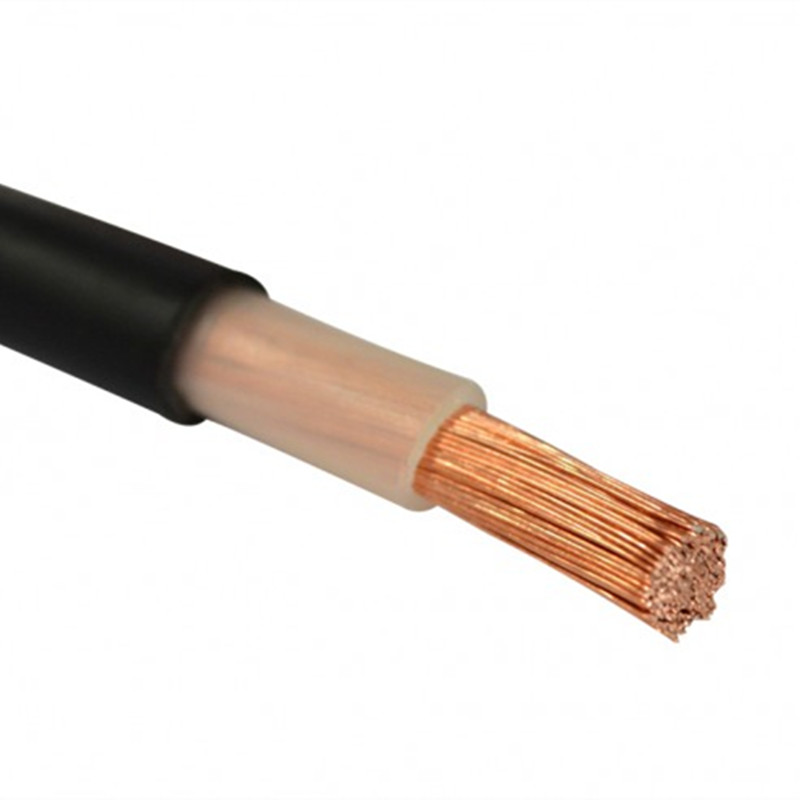

0.6/1KV RV-K Cable

flexible copper conductor XLPE insulation PVC jacket

1. Applications: The RV-K cable is for power distribution and can be used for all types of low voltage industrial-type connections, building installations, in urban grids, etc. This cable is particularly suitable for use in challenging layouts because of its high flexibility, also making the installation process substantially easier. It can be buried or installed in ducts as well as outdoors without requiring additional protection. .

2. Standard: IEC60502-1

3. Structure:

Conductor: flexible annealed copper wires, Class 5;

Insulation: XLPE

The standard identification is the following:

1 x ………… Natural

2 x ………… Blue + Brown

3 G ………… Blue + Brown + Yellow/green

3 x ………… Brown + Black + Grey

3 x + 1 x …… Brown + Black + Grey + Blue (reduced cross-section)

4 G ………… Brown + Black + Grey + Yellow/green

4 x ………… Brown + Black + Grey + Blue

5 G ………… Brown + Black + Grey + Yellow/green + Blue

Jacket: flexible PVC, black color.

4. Voltage: 0.6/1KV

5. Working temperature: not exceed 90°C.

6. Minimum bending radius: 5XOD of cable.

Dimension of copper conductor:
Number of Conductor	Conductor   size	Min. diameter  of single wires in cond.	Insulation thickness	Nominal sheath thickness	Overall diameter App.	Approx.  weight
Nos	mm2	Nos	[mm]	[mm]	[mm]	[kg/km]
1	1.5	0.26	0.7	1.4	5.8	45
1	2.5	0.26	0.7	1.4	6.3	57
1	4	0.31	0.7	1.4	6.8	74
1	6	0.31	0.7	1.4	7.4	95
1	10	0.41	0.7	1.4	8.3	141
1	16	0.41	0.7	1.4	9.3	197
1	25	0.41	0.9	1.4	10.7	293
1	35	0.41	0.9	1.4	11.7	386
1	50	0.41	1.0	1.4	13.1	535
1	70	0.51	1.1	1.4	15.0	703
1	95	0.51	1.1	1.5	16.9	996
1	120	0.51	1.2	1.5	18.5	1237
1	150	0.51	1.4	1.6	20.5	1428
1	185	0.51	1.6	1.6	22.8	1742
1	240	0.51	1.7	1.7	25.6	2266
1	300	0.51	1.8	1.8	28.2	2833
1	400	0.51	2.0	1.9	31.6	3620
1	500	0.61	2.2	2.0	35.2	4864
2	1.5	0.26	0.7	1.8	10.1	103
2	2.5	0.26	0.7	1.8	11.0	142
2	4	0.31	0.7	1.8	12.0	191
2	6	0.31	0.7	1.8	13.1	242
2	10	0.41	0.7	1.8	14.9	340
2	16	0.41	0.7	1.8	17.0	480
2	25	0.41	0.9	1.8	19.8	695
2	35	0.41	0.9	1.8	21.8	908
2	50	0.41	1.0	1.8	20.0	1125
2	70	0.51	1.1	1.8	23.0	1535
2	95	0.51	1.1	1.8	25.8	2040
2	120	0.51	1.2	2.0	28.4	2544
2	150	0.51	1.4	2.1	32.5	3193
2	185	0.51	1.6	2.2	34.9	3883
2	240	0.51	1.7	2.3	39.0	5230
3	1.5	0.26	0.7	1.8	10.6	141
3	2.5	0.26	0.7	1.8	11.5	181
3	4	0.31	0.7	1.8	12.6	236
3	6	0.31	0.7	1.8	13.9	309
3	10	0.41	0.7	1.8	15.8	444
3	16	0.41	0.7	1.8	18.1	639
3	25	0.41	0.9	1.8	21.1	939
3	35	0.41	0.9	1.8	23.2	1242
3	50	0.41	1.0	1.8	23.6	1638
3	70	0.51	1.1	1.9	27.5	2259
3	95	0.51	1.1	2.0	30.5	2983
3	120	0.51	1.2	2.1	34.1	3743
3	150	0.51	1.4	2.3	38.4	4688
3	185	0.51	1.6	2.4	42.7	5769
3	240	0.51	1.7	2.6	47.5	7399
3	300	0.51	1.8	2.8	52.6	9190
4	1.5	0.26	0.7	1.8	10.7	172
4	2.5	0.26	0.7	1.8	11.9	223
4	4	0.31	0.7	1.8	13.1	297
4	6	0.31	0.7	1.8	15.1	391
4	10	0.41	0.7	1.8	17.2	569
4	16	0.41	0.7	1.8	19.8	829
4	25	0.41	0.9	1.8	23.1	1227
4	35	0.41	0.9	1.8	25.5	1632
4	50	0.41	1.0	1.9	30.0	2127
4	70	0.51	1.1	2.0	34.2	2938
4	95	0.51	1.1	2.1	38.1	3916
4	120	0.51	1.2	2.3	43.8	4907
4	150	0.51	1.4	2.4	47.9	6118
4	185	0.51	1.6	2.6	53.2	7552
4	240	0.51	1.7	2.8	60.4	9711
*The overall diameter&weight only for reference shall be subjected to actual production.
