ACSR Conductor (ASTM-B 232)

1. Application:  Used as in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

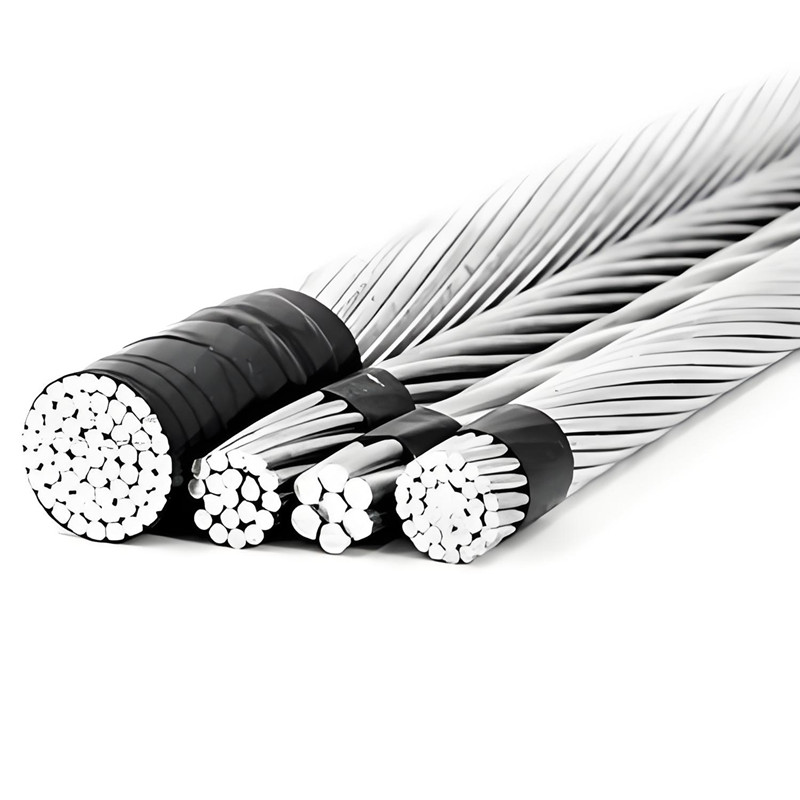

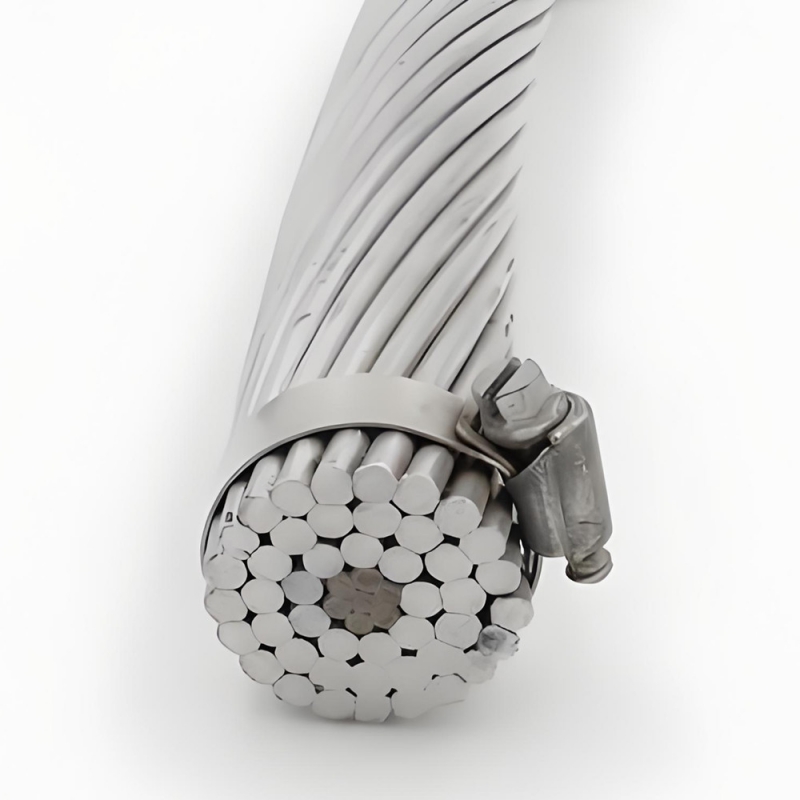

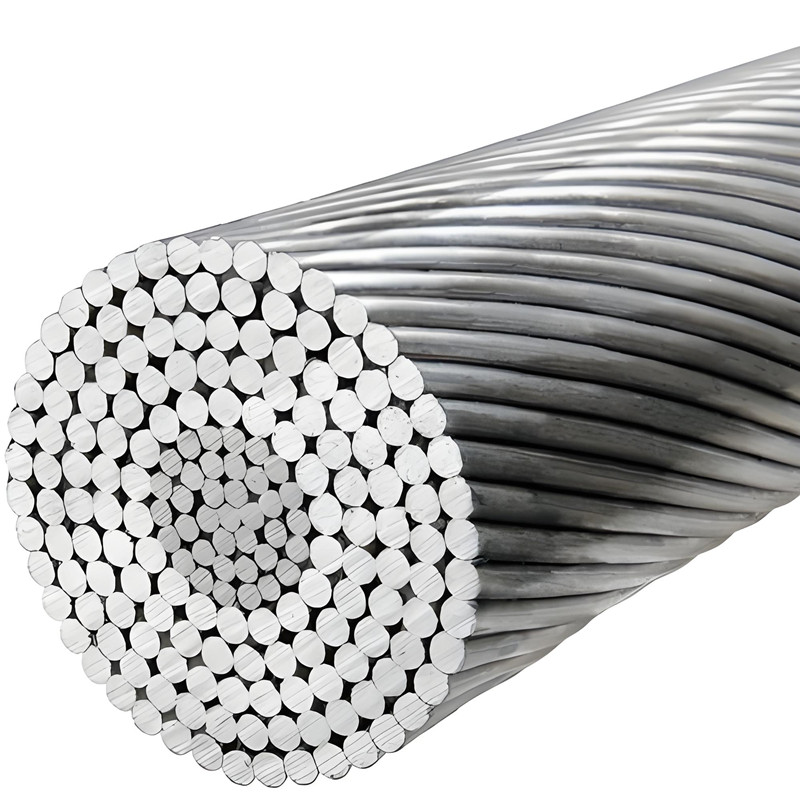

2. Structure: Material:  A solid or concentric stranded central steel core is surrounded by one   or more layers of concentric stranded aluminum 1350.

                     Direction of lay of the outer layer:  Right-hand.

                     Sizes: from 6AWG to 2500kcmil

3.  Standard: ASTM-B 232: Concentric Lay Aluminum Conductors.

                    ASTM-B 230:  Aluminum 1350–H19 Wire for Electrical Purposes;

                   ASTM B-498: Zinc Coated (Galvanized) Steel Core Wire for ACSR




4. Code name	Size	AL wires		Steel wire		OD of conductor	Linear Mass	breaking Load
   /	AWG/MCM	Nos	diameter      (mm)	Nos	diameter      (mm)	mm	Kg/km	daN
   wren	8	6	1.33	1	1.33	3.99	33.7	308
   Turkey	6	6	1.68	1	1.68	5.04	54	524
   Swan	4	6	2.12	1	2.12	6.36	85	832
   Swante	4	7	1.96	1	2.61	6.53	100	1053
   Swallow	3	6	2.38	1	2.38	7.14	107.9	1021
   Sparrow	2	6	2.67	1	2.67	8.01	136	1270
   Sparate	2	7	2.47	1	3.3	8.24	159	1611
   Robin	1	6	3.00	1	3.00	9	171	1585
   Raven	0	6	3.37	1	3.37	10.11	216	1932
   Quail	2/0	6	3.78	1	3.78	11.34	273	2362
   Pigeon	3/0	6	4.25	1	4.25	12.75	343	2941
   Penguin	4/0	6	4.77	1	4.77	14.31	433	3706
   Waxwing	266.8	18	3.09	1	3.09	15.45	431	3027
   Partridge	266.8	26	2.57	7	2	16.28	546	5029
   Ostrich	300	26	2.73	7	2.12	17.28	614	5652
   Merlin	336.4	18	3.47	1	3.47	17.35	544	3823
   Linnet	336.4	26	2.89	7	2.25	18.31	689	6271
   Oriole	336.4	30	2.69	7	2.69	18.83	784	7745
   Chickadee	397.5	18	3.77	1	3.77	18.85	642	4399
   Brant	397.5	24	3.27	7	2.180	19.61	762	6469
   Ibis	397.5	26	3.14	7	2.44	19.88	814	7211
   Lark	397.5	30	2.92	7	2.92	20.44	927	8869
   Pelican	477	18	4.12	1	4.14	20.7	771	5216
   Flicker	477	24	3.58	7	2.39	21.49	915	7666
   Hawk	477	26	3.44	7	2.67	21.79	978	8665
   Hen	477	30	3.2	7	3.2	22.4	1112	10534
   Osprey	556.5	18	4.47	1	4.47	22.35	899	6088
   Parakeet	556.5	24	3.87	7	2.58	23.22	1067	8822
   Dove	556.5	26	3.72	7	2.89	23.55	1140	10103
   Eagle	556.5	30	3.46	7	3.46	24.21	1298	13392
