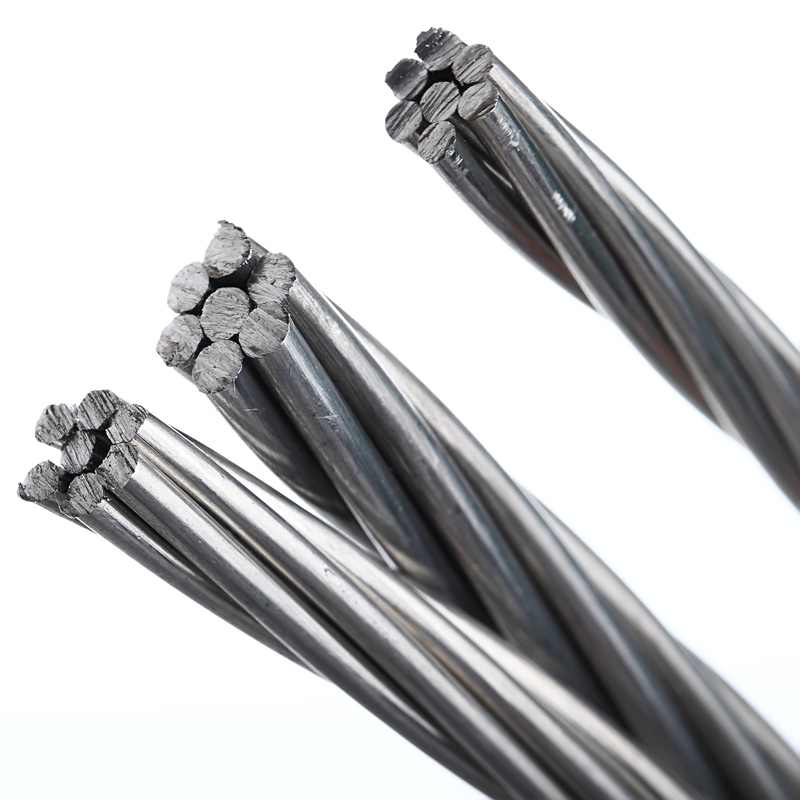

AAC Conductor (IEC 61089)

1. Application:  Used as overhead power transmission and distribution lines.

2. Structure:  Material:  hard-drawn aluminium as per lEC 60889 designated A1 concentrically stranded, with a minimum  purity of 99.7%.

    Direction of lay of the outer layer:  Right-hand.

    Sizes: from 10mm2 to 1500mm2

3. Standard:

   IEC 61089:  Round Wire Concentric Lay Overhead Electric Stranded Conductors.

   IEC 60889:  Hard-Drawn Aluminium Wire For Overhead Line Conductors.






4. Code name	No. of strands	OD of wire	OD of conductor	Linear Mass	breaking Load	D.C Resistance at 20℃
   /	No.s	mm	mm	Kg/km	KN	Ω/km
   10	7	1.35	4.05	27.4	1.950	2.8633
   16	7	1.71	5.12	43.8	3.040	1.7896
   25	7	2.13	6.4	68.4	4.500	1.1453
   40	7	2.7	8.09	109.4	6.800	0.7158
   63	7	3.39	10.2	172.3	10.39	0.4545
   100	19	2.59	12.9	274.8	17.00	0.2877
   125	19	2.89	14.5	343.6	21.25	0.2302
   160	19	3.27	16.4	439.8	26.40	0.1798
   200	19	3.66	18.3	549.7	32.00	0.1439
   250	19	4.09	20.5	687.1	40.00	0.1151
   315	37	3.29	23	867.9	51.97	0.0916
   400	37	3.71	26	1102	64.00	0.0721
   450	37	3.94	27.5	1239.8	72.00	0.0641
   600	37	4.15	29	1377.6	80.00	0.0577
   560	37	4.39	30.7	1542.9	89.60	0.0515
   630	61	3.63	32.6	1738.3	100.80	0.0458
   710	61	3.85	34.6	1959.1	113.60	0.0407
   800	61	4.09	36.8	2207.4	128.00	0.0361
   900	61	4.33	39	2483.3	144.00	0.0321
   1000	61	4.570	41.1	2759.2	160.00	0.0289
   1120	91	3.96	43.5	3093.5	179.20	0.0258
   1250	91	4.18	46	3452.6	200.00	0.0231
   1400	91	4.43	48.7	3866.9	224.00	0.0207
   1500	91	4.58	50.4	4143.1	240.00	0.0193
