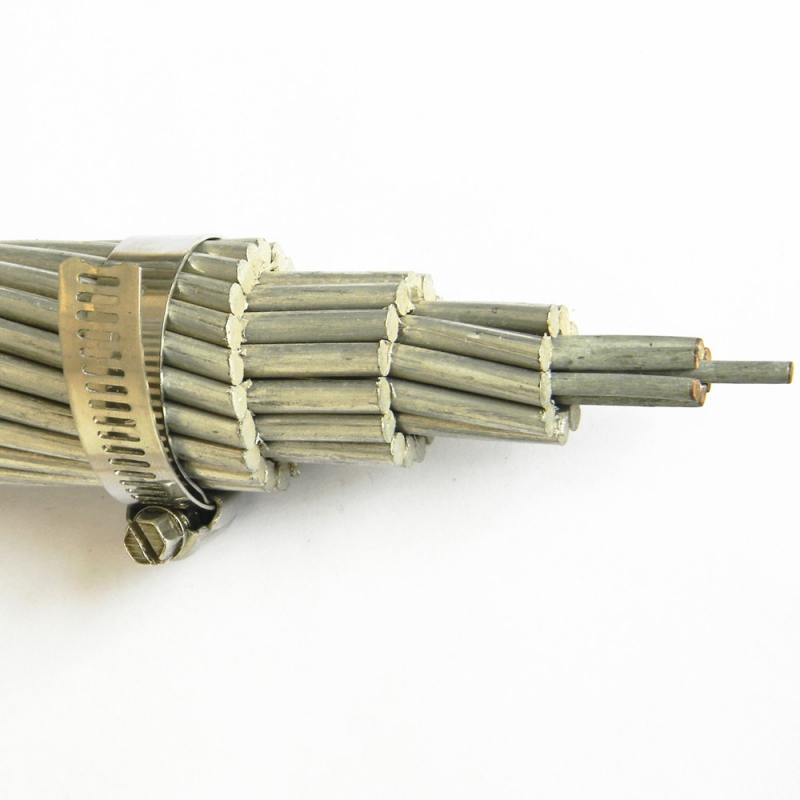

AAC Conductor (ASTM-B 231)

1. Application: Used as overhead power transmission and distribution lines.

2. Structure: Material:  Hard drawn aluminum 1350–H19 (extra hard) round  wire, concentrically stranded, with a minimum  purity of 99.7%.

3. Direction of lay of the outer layer:  Right-hand.

4. Sizes: from 6AWG to 2500kcmil

5. Standard: ASTM-B 231:  Concentric-Lay-Stranded Aluminum 1350 Conductors;

                   ASTM-B 230:  Aluminum 1350–H19 Wire for Electrical Purposes;







6. Code name	Size		No. of strands	OD of wire	OD of conductor	Linear Mass	breaking Load
   /	AWG/MCM	mm2	No.s	mm	mm	Kg/km	daN
   Rose	4	21.2	7	1.961	5.89	57	396
   Iris	2	33.6	7	2.474	7.42	94	596
   Pansy	1	42.4	7	2.776	8.33	117	732
   Poppy	1/0	53.5	7	3.119	9.36	147	873
   Aster	2/0	67.4	7	3.503	10.51	186	1102
   Phlox	3/0	85.0	7	3.932	11.8	234	1347
   Oxlip	4/0	107.2	7	4.417	13.26	297	1698
   Sneezewort	250	126.7	19	2.913	14.4	349	2007
   Daisy	266.8	135.2	7	4.80	14.9	373	2141
   Peony	300	152.0	19	3.01	15.97	419	2403
   Tulip	336.4	170.5	7	4.96	16.91	470	2695
   Daffodil	350	177.4	19	3.193	17.24	489	2804
   Canna	397.5	201.4	19	3.381	18.36	555	3184
   Goldentuft	450	228.0	19	3.447	19.55	629	3499
   Cosmos	477	241.7	19	3.673	20.12	666	3708
   Zinnia	500	253.4	19	3.909	20.6	698	3886
   Dahlia	556.5	282.0	37	3.882	21.73	777	4327
   Meadowsweet	600	304.0	19	4.023	22.63	838	4702
   Orchid	636	322.3	37	2.951	23.31	888	4985
   Verbena	700	354.7	19	4.120	24.45	978	5487
   Petunia	750	380.0	19	4.346	25.32	1048	5875
   Lilac	795	402.8	37	3.114	26.11	1111	6345
   Arbutus	795	402.8	37	3.233	26.06	1111	6232
   Snapdragon	900	456.1	37	3.33	27.78	1256	6978
   Cockscomb	900	456.1	61	2.72	27.73	1256	6848
   Magnolia	954	483.4	37	3.493	28.55	1333	7257
   Camellia	1000	506.7	61	2.75	29.36	1397	7753
   Hawkweed	1000	506.7	37	3.533	29.23	1397	7608
   Marigold	1113	563.9	61	2.817	30.89	1556	8628
   Gladiolus	1510.5	765.4	61	4.00	35.09	2110	11365
   Coreopsis	1590	805.7	61	4.099	36.51	2221	11964
   Jessamine	1750	886.7	61	4.302	38.73	2445	13168
   Cowslip	2000	1013.4	91	3.760	41.40	2791	15300
