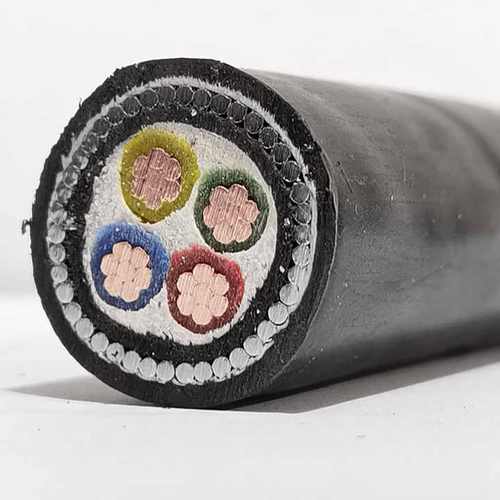

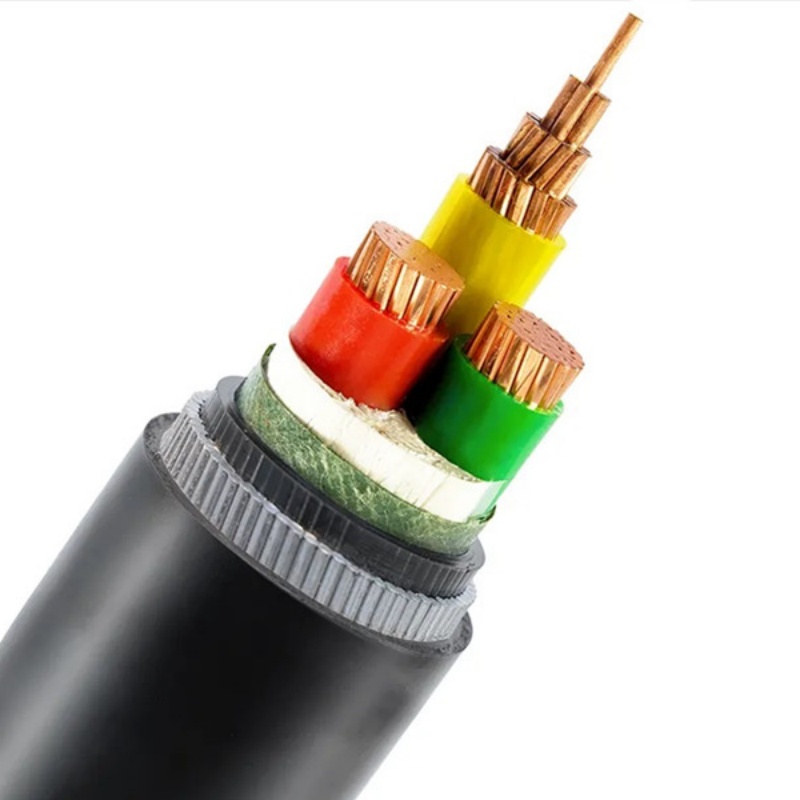

0.6/1KV CU/XLPE/PVC/SWA/PVC Cables

1. Application: For power supply networks in fixed installations indoors,outdoors, underground and in ducts.

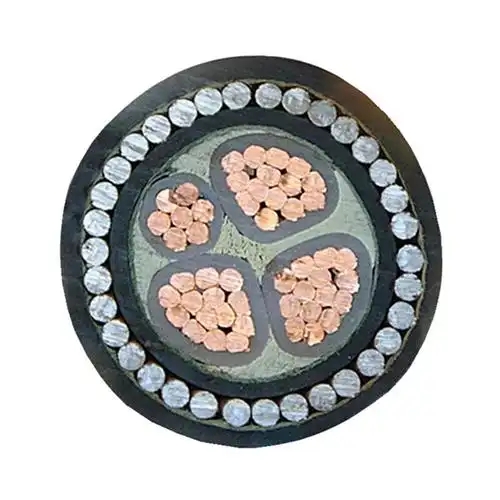

2. Structure:

Conductor: annealed stranded Copper or aluminium conductor, class 2.

Insulation: XLPE

Filler: PP ropes

Wrapping: No woven tape

Inner sheath: Polyvinyl chloride PVC

Armour: Galvanized steel wire armour (SWA) for multi-conductor cables;

Aluminium wires armour (AWA) for single conductor cables.

Outer-sheath: Poly-vinyl chloride (PVC), Black color.

3. Standard: IEC60502-1

4. Voltage: 0.6/1KV

5. Working temperature: Max. conductor temperature at normal operation: 90℃

Max. conductor temperature at short circuit(Max. 5s duration): 250℃

6. Minimum bending radius: for single conductor cable, 15XOD of cable;

for multi-conductor cable, 12XOD of cable.

Number of Conductor	Conductor size	Min. No. of wires in cond.	Insulation thickness	Diameter of armour wire	Nominal sheath thickness	Overall diameter App.	Approx. weight [kg/km]
Nos	mm2	Nos	[mm]	mm	[mm]	[mm]	CU	AL
1	1.5	7	0.7	1.0	1.8	11.4	162	153
1	2.5	7	0.7	1.0	1.8	11.9	183	168
1	4	7	0.7	1.0	1.8	12.4	207	182
1	6	7	0.7	1.0	1.8	13.0	238	202
1	10	7	0.7	1.0	1.8	13.9	295	234
1	16	7	0.7	1.0	1.8	14.9	371	274
1	25	7	0.9	1.0	1.8	16.3	487	334
1	35	7	0.9	1.3	1.8	17.8	625	411
1	50	7	1.0	1.3	1.8	19.2	794	489
1	70	19	1.1	1.3	1.8	21.1	1021	593
1	95	19	1.1	1.6	1.8	23.5	1333	752
1	120	19	1.2	1.6	1.8	25.1	1602	869
1	150	19	1.4	1.6	1.8	26.9	1932	1015
1	185	37	1.6	1.6	1.8	29.2	2316	1186
1	240	37	1.7	1.6	1.9	32.0	2901	1435
1	300	37	1.8	2.0	2.0	35.4	3606	1774
1	400	60	2.0	2.0	2.2	39.4	4693	2250
1	500	60	2.2	2.0	2.3	43.0	5737	2683
1	630	60	2.4	2.5	2.4	48.2	7212	3364
2	1.5	7	0.7	0.8	1.8	14.5	338	319
2	2.5	7	0.7	0.8	1.8	15.4	390	359
2	4	7	0.7	0.8	1.8	16.4	448	400
2	6	7	0.7	1.3	1.8	18.4	641	568
2	10	7	0.7	1.3	1.8	20.2	790	668
2	16	7	0.7	1.3	1.8	22.3	992	797
2	25	7	0.9	1.6	1.8	25.8	1440	1135
2	35	7	0.9	1.6	1.8	27.8	1714	1288
2	50	10	1.0	1.6	1.9	26.2	1880	1272
2	70	14	1.1	2.0	2.0	30.2	2611	1760
2	95	19	1.1	2.0	2.1	33.2	3252	2097
2	120	24	1.2	2.0	2.3	36.0	3870	2411
2	150	30	1.4	2.5	2.4	41.1	5037	3212
2	185	37	1.6	2.5	2.6	44.1	5925	3675
2	240	48	1.7	2.5	2.7	48.0	7250	4331
2	300	61	1.8	2.5	2.9	52.2	8678	5030
3	1.5	7	0.7	0.8	1.8	15.0	371	343
3	2.5	7	0.7	0.8	1.8	15.9	432	386
3	4	7	0.7	0.8	1.8	17.0	510	437
3	6	7	0.7	1.3	1.8	19.2	732	623
3	10	7	0.7	1.3	1.8	21.1	918	736
3	16	7	0.7	1.3	1.8	23.4	1187	895
3	25	7	0.9	1.6	1.8	27.1	1725	1268
3	35	7	0.9	1.6	1.8	29.2	2105	1466
3	50	10	1.0	1.6	1.9	29.8	2529	1617
3	70	14	1.1	2.0	2.1	35.1	3575	2298
3	95	19	1.1	2.0	2.2	38.1	4425	2692
3	120	24	1.2	2.0	2.3	41.7	5343	3154
3	150	30	1.4	2.5	2.5	47.4	6898	4162
3	185	37	1.6	2.5	2.7	51.9	8243	4868
3	240	48	1.7	2.5	2.9	57.1	10210	5832
3	300	61	1.8	2.5	3.0	62.0	12268	6795
4	1.5	7	0.7	0.80	1.8	15.8	418	381
4	2.5	7	0.7	0.80	1.8	16.8	491	430
4	4	7	0.7	1.25	1.8	19.0	710	612
4	6	7	0.7	1.25	1.8	20.4	852	706
4	10	7	0.7	1.25	1.8	22.5	1092	849
4	16	7	0.7	1.60	1.8	25.8	1574	1185
4	25	7	0.9	1.60	1.8	29.1	2090	1482
4	35	7	0.9	1.60	1.9	31.7	2589	1738
4	50	10	1.0	2.00	2.1	33.0	3300	2084
4	70	14	1.1	2.00	2.2	37.6	4352	2649
4	95	19	1.1	2.00	2.3	41.7	5516	3205
4	120	24	1.2	2.50	2.5	46.6	7070	4151
4	150	30	1.4	2.50	2.7	51.2	8545	4897
4	185	37	1.6	2.50	2.8	55.9	10242	5743
4	240	48	1.7	2.50	3.1	62.2	12818	6980
4	300	61	1.8	2.50	3.2	67.2	15373	8076
The overall diameter&weight only for reference shall be subjected to actual production.

Conductor	annealed stranded Copper or aluminium conductor
Insulation	XLPE
Filler	PP ropes
Wrapping	No woven tape
Inner sheath	Polyvinyl chloride PVC
Armour	Galvanized steel wire armour (SWA) for multi-conductor cables; Aluminium wires armour (AWA) for single conductor cables.
Outer-sheath	Poly-vinyl chloride (PVC), Black color
Voltage	0.6/1KV
Working temperature	Max. conductor temperature at normal operation: 90℃。Max. conductor temperature at short circuit(Max. 5s duration): 250℃
Minimum bending radius	for single conductor cable, 15XOD of cable; for multi-conductor cable, 12XOD of cable.
