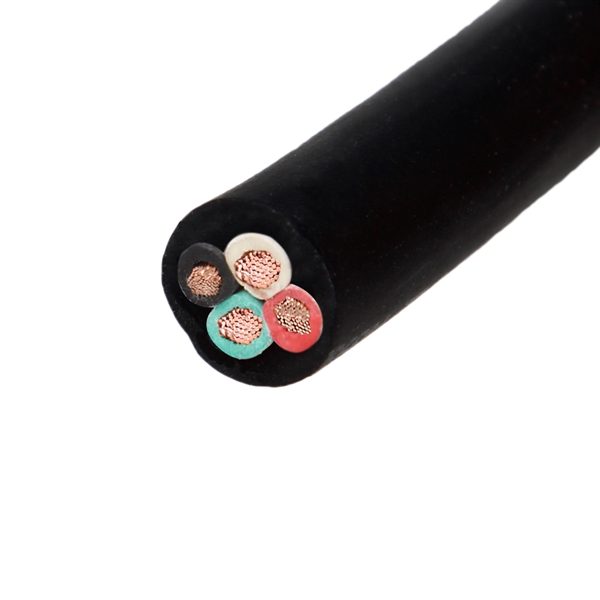

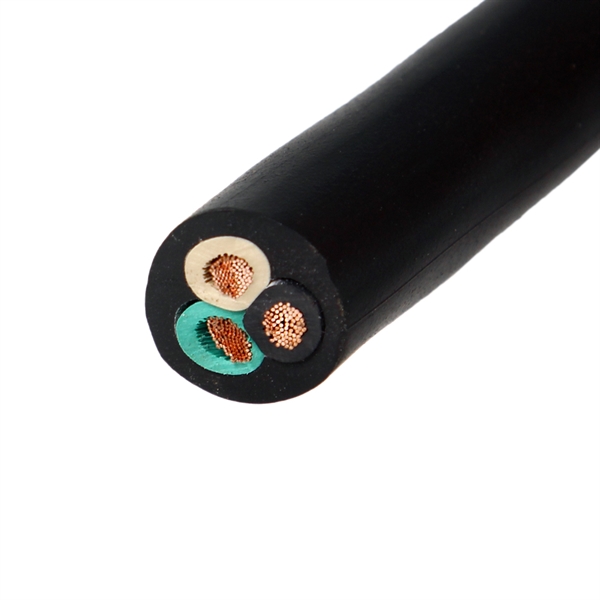

Type SOOW Flexible Cords
Applications: for use in heavy-duty industrial applications where flexibility and durability is required. SOOW is designed for extra hard usage on industrial equipment, heavy tools, motor and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, marine dockside power and mining applications.
Structure:
1. Conductor: Bare flexible stranded copper conductors
2. Insulation: Ethylene Propylene Diene Monomer rubber (EPDM)
3. Jacket: Chlorinated Polyethylene rubber (CPE)
Voltage: 600V
Standard: UL 62
Working temperature: -40~+90℃
Minimum bending radius: 4X Cable’ diameter
| Number of conductors | Conductor size | Thickness of insulation | Overall diameter App. | Approx. weight | Max. DC resistance of conductor @20℃ |
| Nos | AWG | [MM] | [MM] | [kg/km] | [Ω/KM] |
| 2 | 18 | 0.76 | 1.52 | 101 | 22.40 |
| 3 | 18 | 0.76 | 1.52 | 118 | 22.40 |
| 4 | 18 | 0.76 | 1.52 | 141 | 22.40 |
| 2 | 16 | 0.76 | 1.52 | 123 | 14.10 |
| 3 | 16 | 0.76 | 1.52 | 145 | 14.10 |
| 4 | 16 | 0.76 | 1.52 | 176 | 14.10 |
| 2 | 14 | 1.14 | 2.03 | 223 | 8.88 |
| 3 | 14 | 1.14 | 2.03 | 263 | 8.88 |
| 4 | 14 | 1.14 | 2.03 | 318 | 8.88 |
| 2 | 12 | 1.14 | 2.41 | 299 | 5.58 |
| 3 | 12 | 1.14 | 2.41 | 354 | 5.58 |
| 4 | 12 | 1.14 | 2.41 | 429 | 5.58 |
| 2 | 10 | 1.14 | 2.41 | 374 | 3.51 |
| 3 | 10 | 1.14 | 2.41 | 451 | 3.51 |
| 4 | 10 | 1.14 | 2.41 | 553 | 3.51 |
| 3 | 8 | 1.52 | 2.79 | 770 | 2.18 |
| 4 | 8 | 1.52 | 3.18 | 993 | 2.18 |
| 5 | 8 | 1.52 | 3.18 | 1180 | 2.18 |
| 3 | 6 | 1.52 | 3.18 | 1056 | 1.38 |
| 4 | 6 | 1.52 | 3.56 | 1358 | 1.38 |
| 5 | 6 | 1.52 | 3.56 | 1618 | 1.38 |
| 3 | 4 | 1.52 | 3.56 | 1413 | 0.865 |
| 4 | 4 | 1.52 | 3.94 | 1810 | 0.865 |
| 5 | 4 | 1.52 | 3.94 | 2164 | 0.865 |
| 3 | 2 | 1.52 | 3.94 | 2053 | 0.549 |
| 4 | 2 | 1.52 | 4.32 | 2631 | 0.549 |
| 5 | 2 | 1.52 | 4.32 | 3159 | 0.549 |
