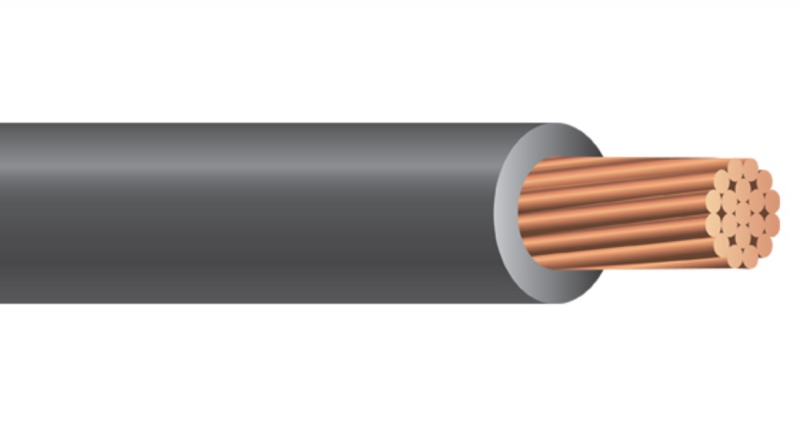

600V XHHW-2 wire

1. Applications:used in conduit or recognized raceways for services,feeders, and branch circuit wiring as specified in the National Electrical Code.

2. Structure:

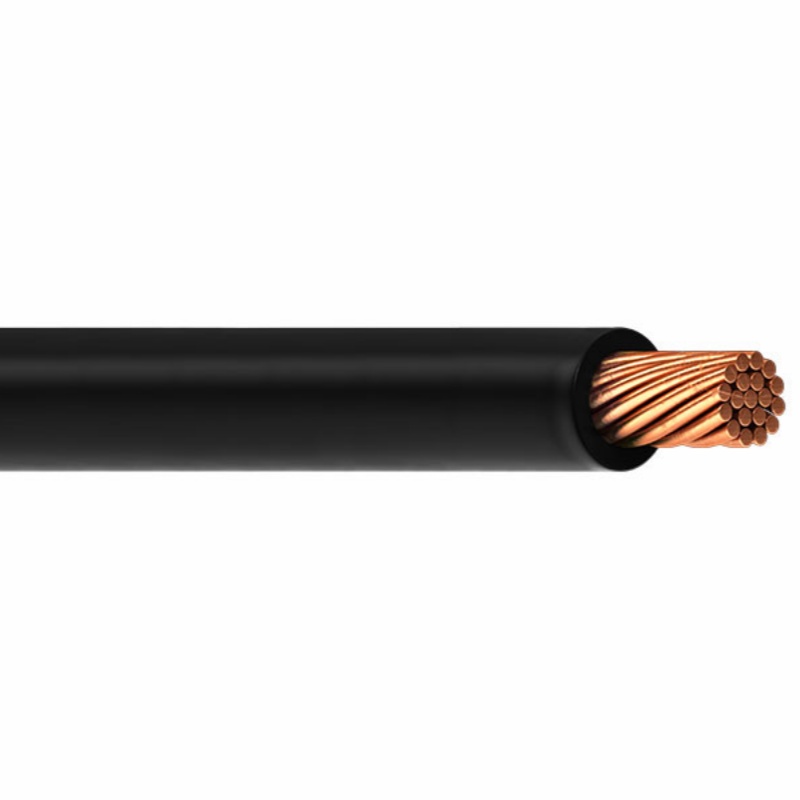

Conductor: annealed stranded copper wires, according to ASTM B3, B8.

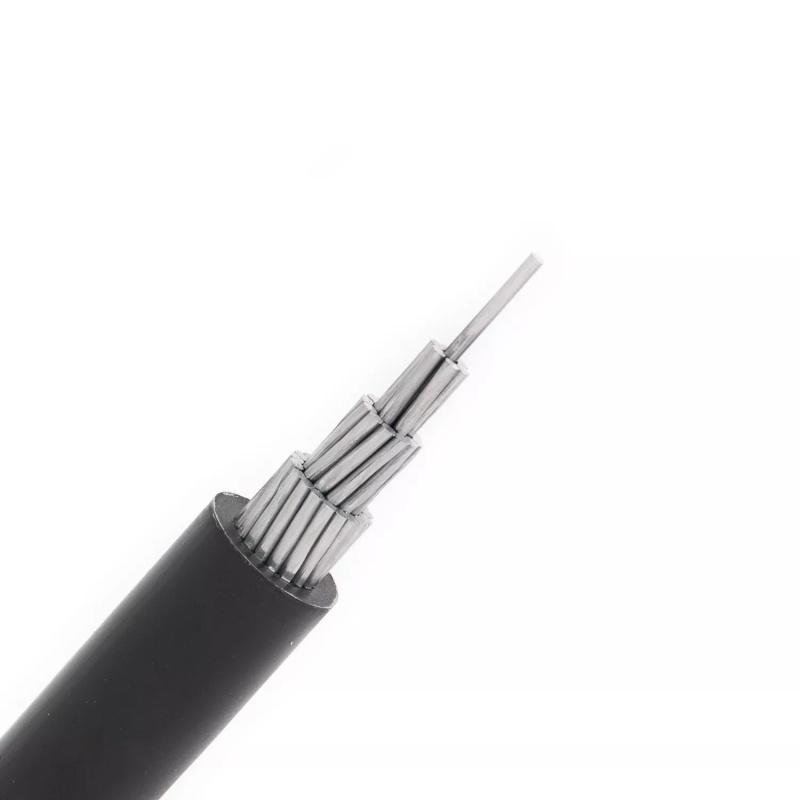

compact aluminum alloy 8000 series, according to ASTM B 800, B 801.

Insulation: crosslinked polyethylene (XLPE)

3. Standard: UL 44

4. Voltage: 600V

5. Working temperature: dry or wet not exceed 90°C.

6. Minimum bending radius: 20XOD of cable.

Demensions&characteristics of copper conductor:
Conductor size	No.  of wires in cond.	Insulation thickness	Approx. OD of cable	Approx  weight of cable	Max.  DC resistance of conductor @20℃
AWG	Nos.	[MM]	[MM]	[kg/km]	[Ω/KM]
14	7	0.76	2.9	21	8.6200
12	7	0.76	3.4	33	5.4300
10	7	0.76	4.3	51	3.4100
8	7	1.14	5.9	94	2.1400
6	7	1.14	6.8	142	1.3500
4	7	1.14	8.0	219	0.8480
3	7	1.14	8.7	269	0.6730
2	7	1.14	9.5	334	0.5340
1	19	1.40	10.9	421	0.4230
1/0	19	1.40	11.9	530	0.3350
2/0	19	1.40	13.1	657	0.2660
3/0	19	1.40	14.3	819	0.2110
4/0	19	1.40	15.7	1022	0.1670
250	37	1.65	17.4	1220	0.1420
300	37	1.65	18.7	1450	0.1180
350	37	1.65	21.2	1681	0.1010
400	37	1.65	21.1	1912	0.0885
500	37	1.65	23.2	2374	0.0709
600	61	2.03	25.9	2868	0.0590
750	61	2.03	28.5	3560	0.0472
Demensions&characteristics  of aluminium conductor:
Conductor size	No.  of wires in cond.	Insulation thickness	Approx. OD of cable	Approx  weight of cable	Max.  DC resistance of conductor @20℃
AWG	Nos.	[MM]	[MM]	[kg/km]	[Ω/KM]
8	7	1.14	5.6	41	3.5150
6	7	1.14	6.5	58	2.2110
4	7	1.14	7.6	85	1.3900
3	7	1.14	8.3	101	1.1030
2	7	1.14	9.0	123	0.8745
1	18	1.40	10.3	158	0.6934
1/0	18	1.40	11.3	194	0.5498
2/0	18	1.40	12.3	236	0.4361
3/0	18	1.40	13.5	289	0.3459
4/0	18	1.40	14.8	355	0.2743
250	35	1.65	16.3	428	0.2322
300	35	1.65	17.5	502	0.1935
350	35	1.65	19.9	576	0.1659
400	35	1.65	19.8	650	0.1450
500	35	1.65	21.7	797	0.1161
600	58	2.03	24.3	974	0.0967
750	58	2.03	26.7	1195	0.0774
