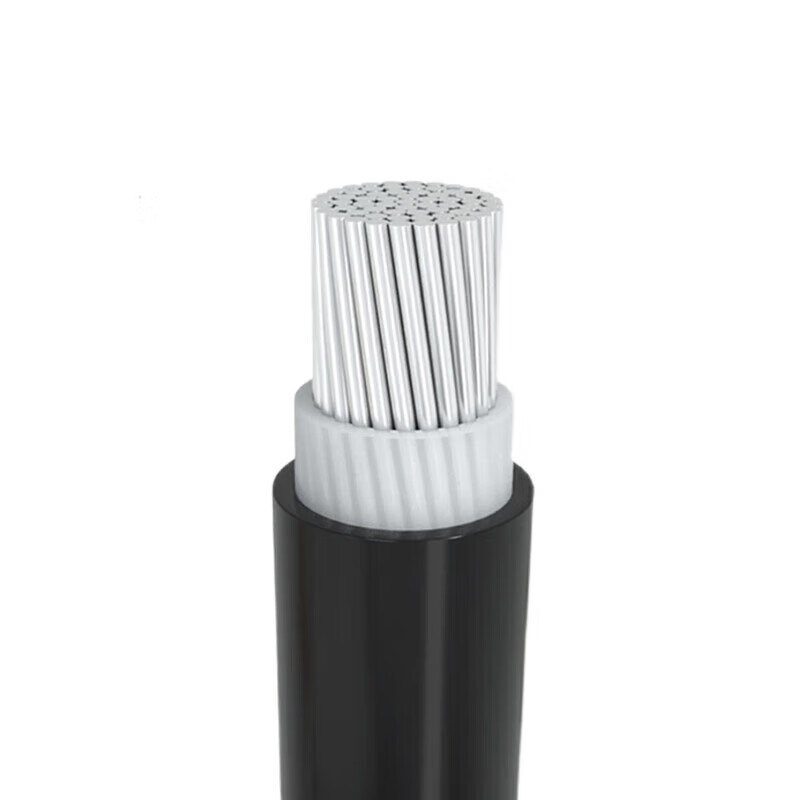

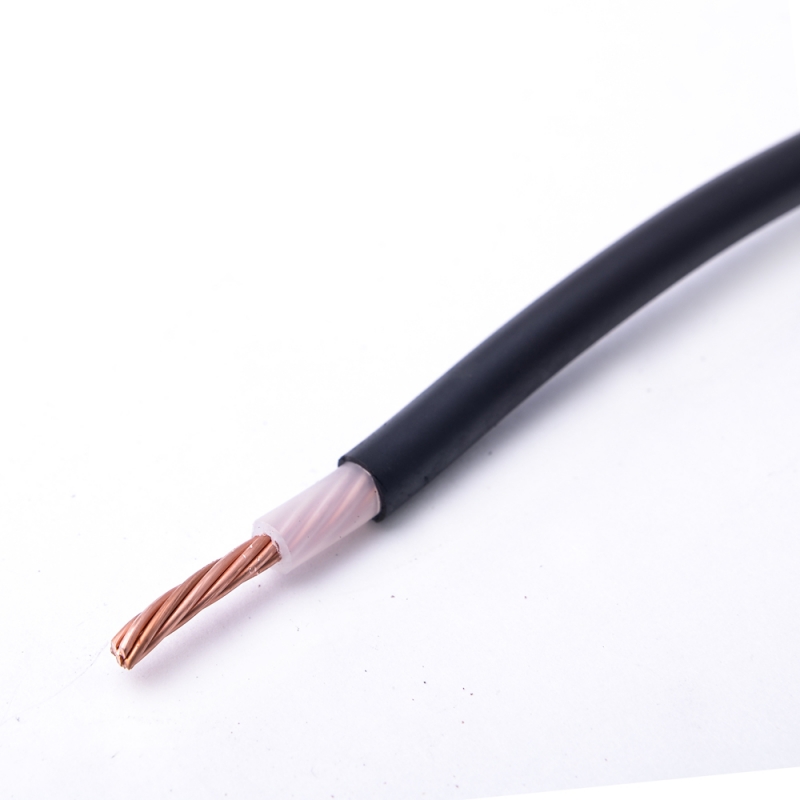

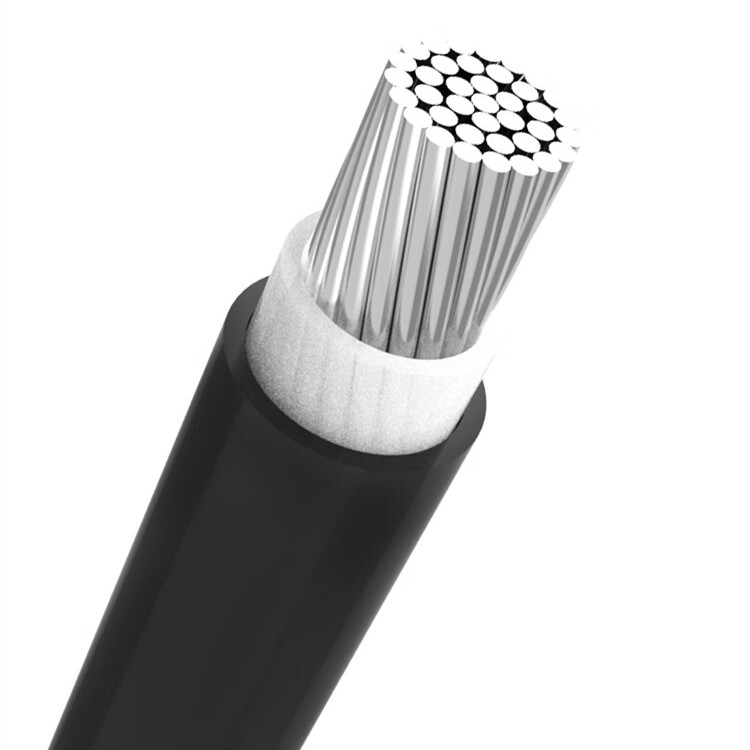

600V TTU Cable

                                                      singe conductor XLPE insulation PVC jacket

1. Applications: For use in building and industrial installations, especially in underground line mainly for underground service.

2. Standard: ICEA S-95- 658/NEMA WC 70

3. Structure:

Conductor: Soft copper or aluminium alloy 8000 series concentric stranded wires, Class B;

Insulation: PE

Jacket: PVC, black color.

4. Voltage: 600V, 2KV

5. Working temperature: not exceed 75°C.

6. Minimum bending radius: 20XOD of cable.

Demensions of 600V:
Conductor size	No.  of wires in cond.	Insulation thickness	Min.Jacket thickness	Approx. OD of cable	Approx  weight of cable [kg/km]		Max.  DC resistance of conductor @20℃ [Ω/KM]
AWG	Nos	[MM]	[MM]	[MM]	CU	AL	CU	AL
14	1	0.76	0.38	4.0	31	19	8.4500	/
12	1	0.76	0.38	4.4	44	24	5.3100	/
10	1	0.76	0.38	5.0	63	31	3.3400	/
14	7	0.76	0.38	4.1	169	87	8.6200	/
12	7	0.76	0.38	4.6	46	25	5.4300	/
10	7	0.76	0.38	5.2	66	33	3.4100	/
8	7	1.14	0.38	6.8	105	53	2.1400	3.515
6	7	1.14	0.76	8.5	169	87	1.3500	2.211
4	7	1.14	0.76	9.3	245	114	0.8480	1.390
3	7	1.14	0.76	10.4	302	138	0.6730	1.103
2	7	1.14	0.76	11.2	370	162	0.5340	0.875
1	19	1.40	1.14	13.5	490	228	0.4230	0.693
1/0	19	1.40	1.14	14.5	599	269	0.3350	0.550
2/0	19	1.40	1.14	14.9	726	310	0.2660	0.436
3/0	19	1.40	1.14	17.0	904	380	0.2110	0.346
4/0	19	1.40	1.14	18.5	1115	454	0.1670	0.274
250	37	1.65	1.65	21.2	1371	587	0.1420	0.232
300	37	1.65	1.65	22.6	1612	674	0.1180	0.194
350	37	1.65	1.65	23.9	1852	759	0.1010	0.166
400	37	1.65	1.65	25.1	2099	846	0.0885	0.145
500	37	1.65	1.65	25.1	2544	982	0.0709	0.1161
600	61	2.03	1.65	30.0	3090	1213	0.0590	0.0967
750	61	2.03	1.65	32.7	3805	1459	0.0472	0.0774
