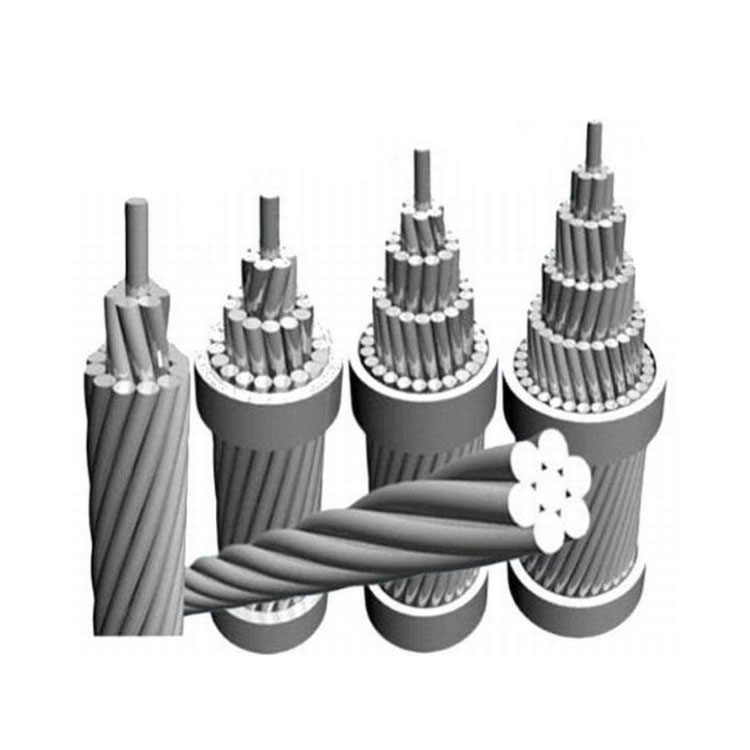

AAAC Conductor (ASTM-B 399)

1. Application: Used as overhead power transmission and distribution lines.

2. Structure: Material:  6201 aluminum alloy wires concentrically stranded

                  Direction of lay of the outer layer: Right-hand

                  Sizes: from 6AWG to 1750kcmil

3. Standard:  ASTM-B 399:  Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors;

                     ASTM-B 398:  Aluminum-Alloy 6201-T81 Wire for Electrical Purposes;







4. Code name	Size		No. of strands	OD of wire	OD of conductor	Linear Mass	Breaking Load
   /	AWG/MCM	mm2	No.s	mm	mm	Kg/km	KN
   Akron	6	15.51	7	1.68	5.04	42.7	4.92
   Alton	48.69(4)	24.67	7	2.12	6.35	67.56	7.83
   Ames	77.47(2)	39.26	7	2.67	8.02	107.5	12.50
   Azusa	123.3(1/0)	62.46	7	3. 37	10.11	171	19.79
   Anaheim	155.4(2/0)	78.75	7	3.78	11.35	215.16	23.98
   Amherst	195.7 (3/0)	99.2	7	4.25	12.75	271.5	30.17
   Alliance	246.9 (4/0)	125.1	7	4.77	14.3	342.6	38.07
   Butte	312.8	158.5	19	3.26	16.31	434	48.76
   Canton	394.5	199	19	3.66	18.31	547.4	58.96
   Cairo	465.4	235.8	19	3.98	19.89	645.7	69.55
   Darien	559.5	283.5	19	4.36	21.79	776.3	83.55
   Elgin	652.4	330.6	19	4.71	23.55	970.6	97.43
   Flint	740.8	375.4	37	3.59	25.15	1028	107.93
   Greeley	927.2	469.8	37	4.02	28.14	1287	135.91
