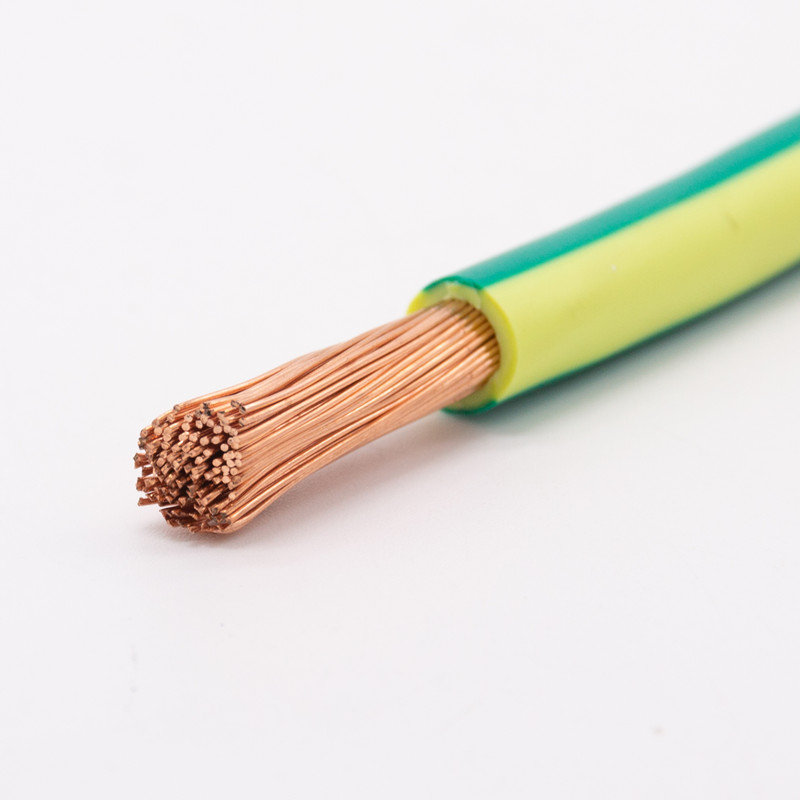

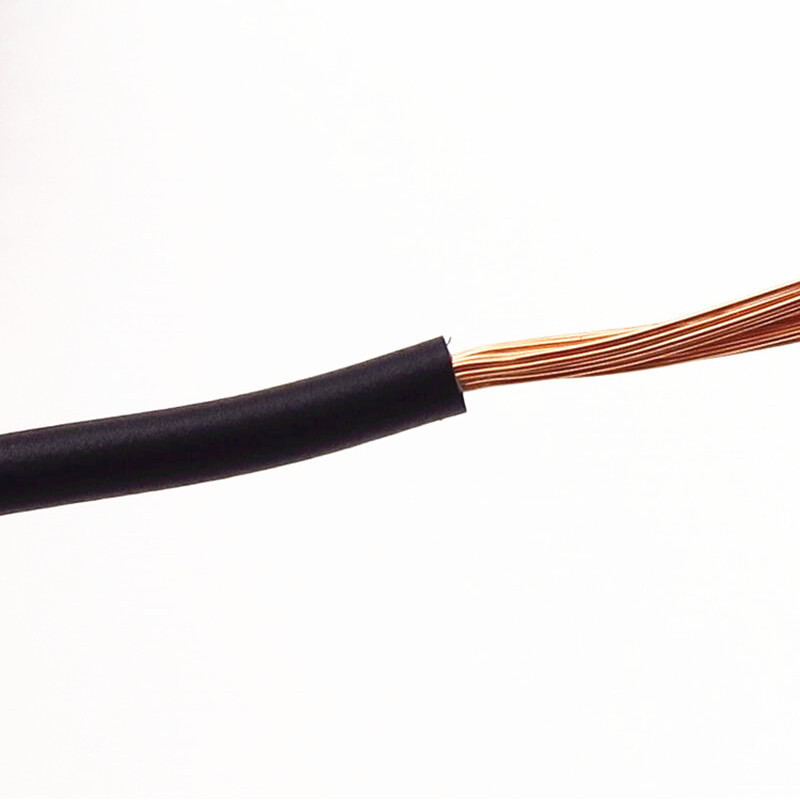

Flexible Electric wire  Type H05V-K H07V-K

1. Application: principally used for panels and cabinets stranding.Installation in open air, in conduits, or trunking.

2. Structure:

Conductor: annealed stranded copper, flexible, class 5, according to IEC 60228.

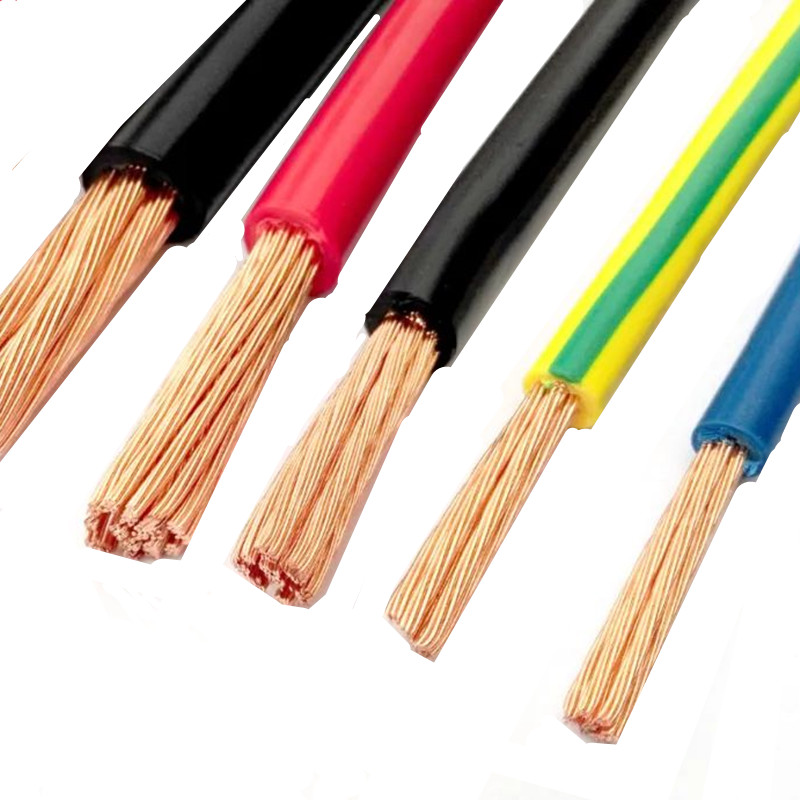

Insulation: Poly-vinyl chloride (PVC). color can be Black, white, red, yellow, gray, yellow-green, blue, purple, etc.

3. Standard: IEC60227-3, BS6004, BS EN 50525-2-31

4. Voltage: 300/500V for H05V-K,

450/750V for H07V-K

5.Working temperature: Maximum conductor temperature in normal use: 70 °C.

6. Minimum bending radius: 8XOD of cable;

Demensions:
Conductor size	Max. diameter of single wire in cond.	Insulation thickness	Approx. OD of cable	Approx  weight of cable	Max.  DC resistance of conductor @20℃
mm2	mm	[MM]	[MM]	[kg/km]	[Ω/KM]
0.5	0.21	0.6	2.09	8.9	39.0
0.75	0.21	0.6	2.30	11.7	26.0
1.0	0.21	0.6	2.46	14.2	19.5
1.5	0.26	0.7	2.97	21.2	13.3
2.5	0.26	0.8	3.57	33.0	7.98
4.0	0.31	0.8	4.09	48.9	5.09
6	0.31	0.8	4.59	65.1	3.39
10	0.41	1.0	6.99	102.7	1.95
16	0.41	1.0	7.39	170.2	1.24
25	0.41	1.2	9.08	262.9	0.795
35	0.41	1.2	10.90	356.5	0.565
50	0.41	1.4	12.90	505.7	0.393
70	0.51	1.4	14.40	686.8	0.277
95	0.51	1.6	16.30	925.9	0.210
120	0.51	1.6	18.20	1154.2	0.164
150	0.51	1.8	20.20	1441.9	0.132
185	0.51	2.0	22.30	1776.6	0.1080
240	0.51	2.2	25.70	2299.7	0.0817
