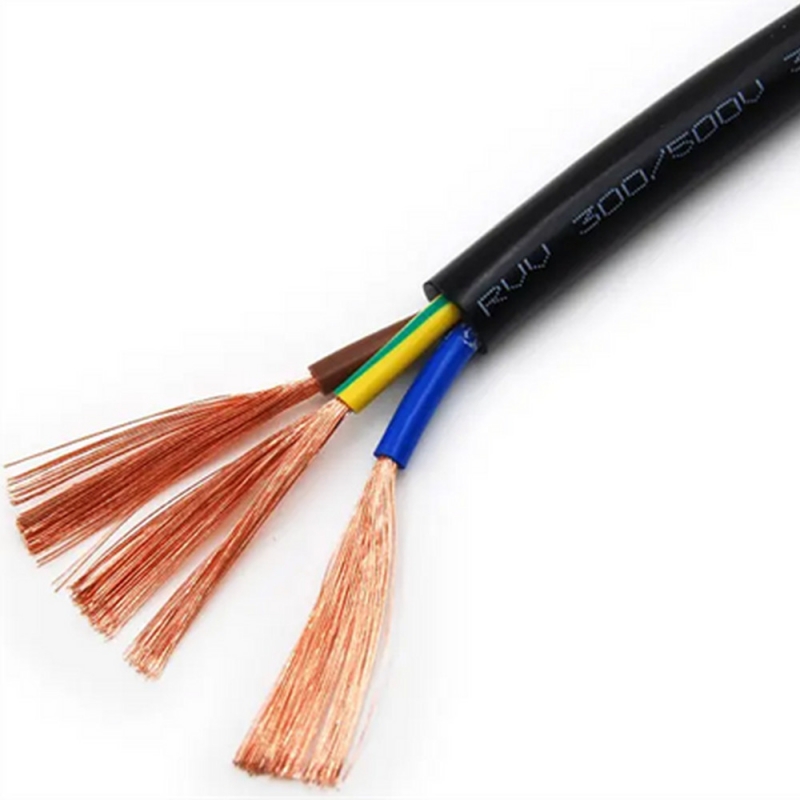

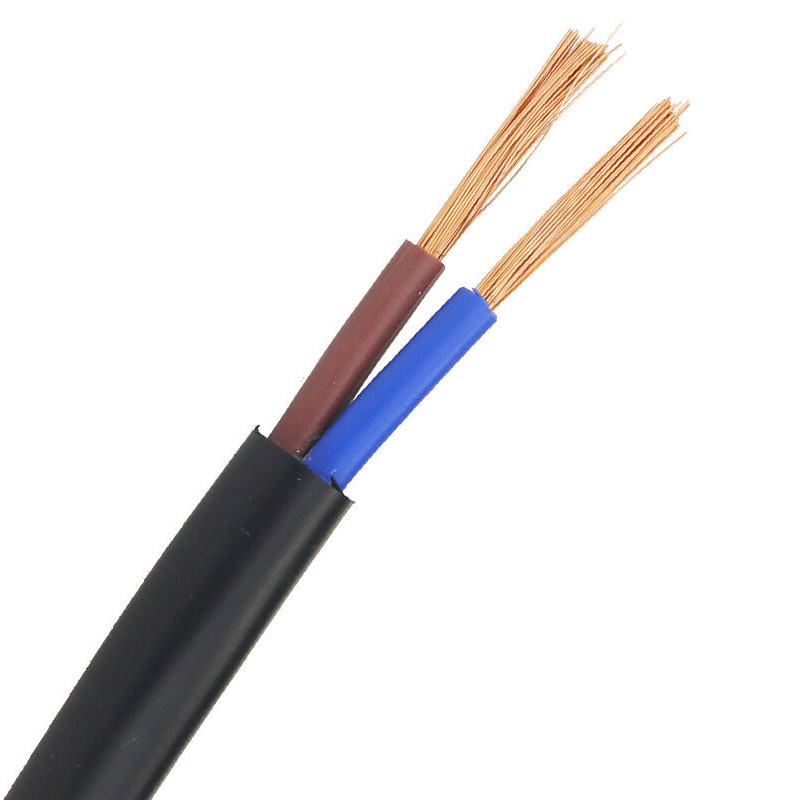

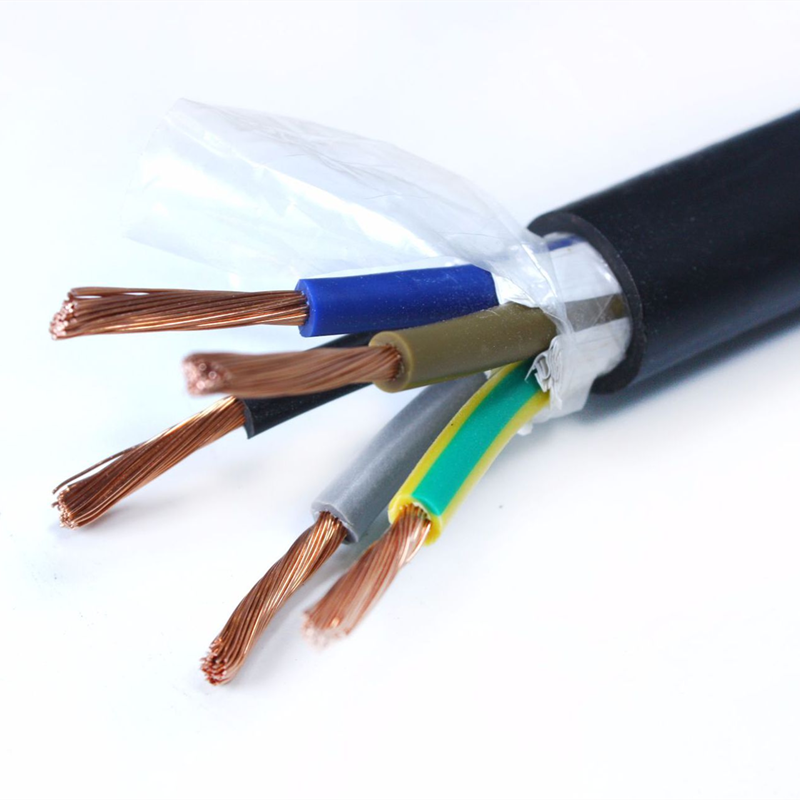

Flexible PVC sheathed electric wire

Electrical Flexible wire Type H03VV-F(300/300V) &H05VV-F(300/500V)

Hits : Print

1 / 4

2 / 4

3 / 4

4 / 4

< >

Electrical Flexible wire

Type H03VV-F(300/300V) &H05VV-F(300/500V)

1. Application: H03VV-F is designed for use in domestic appliances, such as those often found in kitchens and offices. H05VV-F is suitable for use with ordinary duty portable appliances such as radios, table lamps and office equipment where the potential for mechanical stresses and mechanical damage is low.

2. Structure:

.Conductor: plain annealed copper wires, class 5 flexible, according to IEC/EN60228;

Insulation: PVC

Sheath: PVC

3. Standard: IEC60227-5, BS6500, BS EN 50525-2-11.

4. Voltage: 300/300V for H03VV-F

300/500V for H05VV-F

5.Working temperature: Maximum conductor temperature in normal use is 70 °C.

6. Minimum bending radius: 4XOD of cable;

Dimension&Characterics of 300/300V:
Number of conductor	Nominal section area	Thickness of insulation	Thickness of sheath	Overall diameter App.	Approx. weight	Max. DC resistance @20℃
Nos.	mm2	mm	mm	mm	[kg/km]	[Ω/KM]
2	0.5	0.5	0.6	5.0	11	40.1
2	0.75	0.5	0.6	5.6	16	26.7
3	0.5	0.5	0.6	5.2	16	40.1
3	0.75	0.5	0.6	5.9	24	26.7
4	0.5	0.5	0.6	6.1	21	40.1
4	0.75	0.5	0.6	6.8	32	26.7
*Other number of conductor and sizes are also available

Dimension&Characterics of 300/500V:
Number of conductor	Nominal section area	Thickness of insulation	Thickness of sheath	Overall diameter App.	Approx. weight	Max. DC resistance @20℃
Nos.	mm2	mm	mm	mm	[kg/km]	[Ω/KM]
2	0.75	0.6	0.8	6.2	57	26.7
2	1.0	0.6	0.8	6.6	68	20.0
2	1.5	0.7	0.8	7.4	87	13.7
2	2.5	0.8	1.0	9.1	134	8.21
3	0.75	0.6	0.8	6.6	69	26.7
3	1.0	0.6	0.8	6.9	79	20.0
3	1.5	0.7	0.8	7.9	106	13.7
3	2.5	0.8	1.0	9.7	165	8.21
4	0.75	0.6	0.8	7.2	85	26.7
4	1.0	0.6	0.9	7.7	100	20.0
4	1.5	0.7	1.0	9.2	146	13.7
4	2.5	0.8	1.1	10.8	209	8.21
4	0.75	0.6	0.9	7.4	88	26.7
5	1.0	0.6	0.9	8.4	121	20.0
5	1.5	0.7	1.1	10.1	175	13.7
5	2.5	0.8	1.2	12.0	259	8.21
*Other number of conductor and sizes are also available

Conductor	plain annealed copper wires, class 5
Insulation	PVC
Voltage	300/300V for H03VV-F 300/500V for H05VV-F
Working temperature	Maximum conductor temperature in normal use is 70 °C.
Minimum bending radius	4XOD of cable
