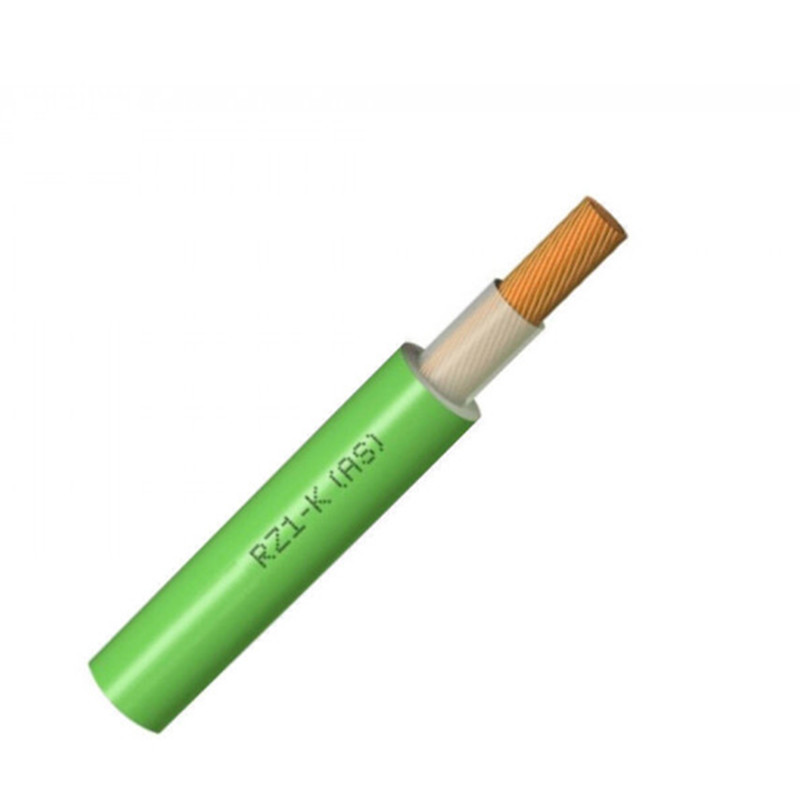

0.6/1KV RZ1-K Cable

flexible copper conductor XLPE insulation LSZH jacket

1. Applications: it is a LSHF safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc

2. Standard: IEC60502-1, UNE 21123-4

3. Structure:

Conductor:flexible annealed copper wires, Class 5;

Insulation: XLPE

The standard identification is the following:

1 x Natural

2 x Blue + Brown

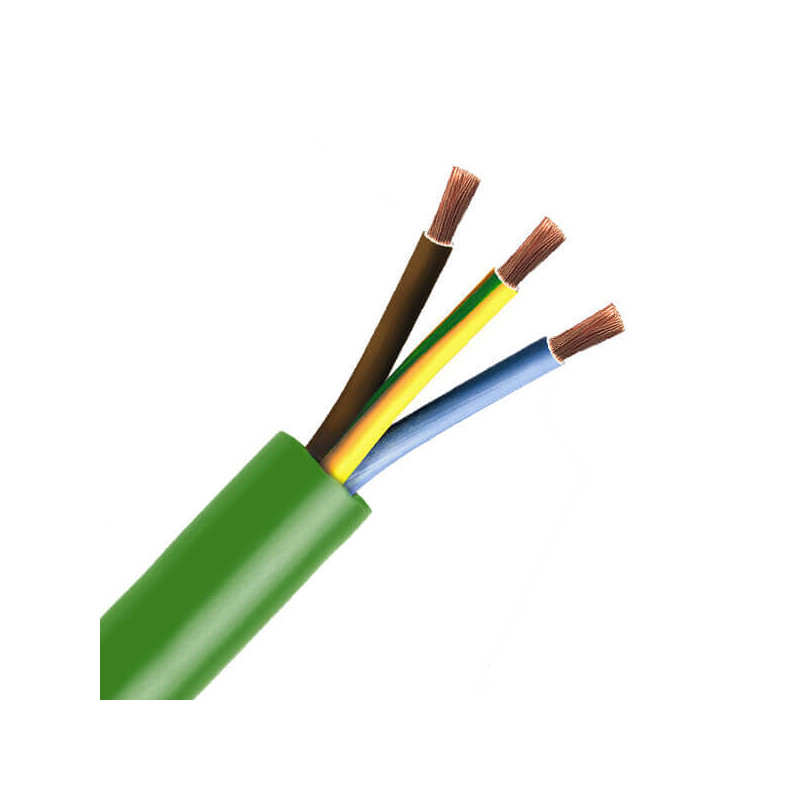

3 G Blue + Brown + Green/yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/yellow

6 G or more Black numbered + Green/yellow.

Jacket: Low Smoke Halogen Free (LSHF) polyolefin outer sheath, green color normally.

4. Voltage: 0.6/1KV

5. Working temperature: not exceed 90°C.

6. Minimum bending radius: 6XOD of cable.
